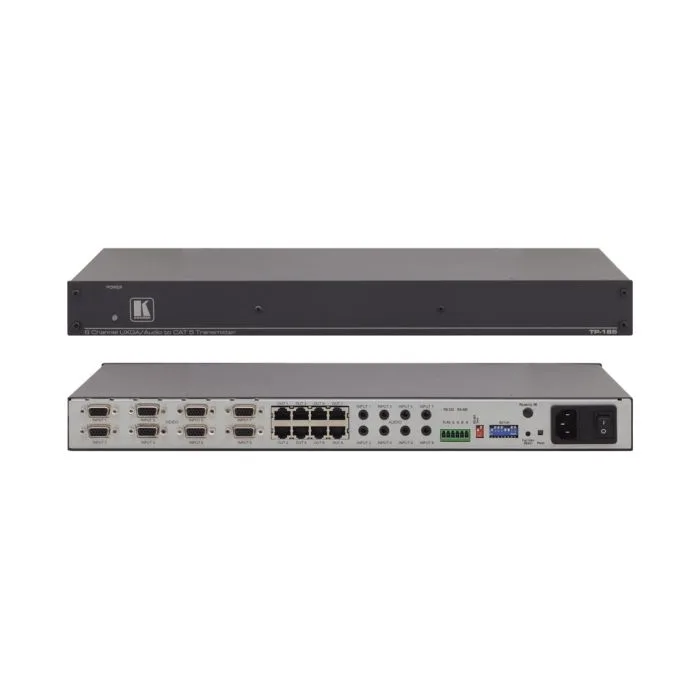

Nadajnik Kramer TP-185
Nadajnik sygnałów VGA wraz z niesymetrycznym stereo audio wysyłanych skrętką.
Wyjście skrętki: RJ-45.
SKU
TP-185
The TP−185 is a twisted pair transmitter for computer graphics, unbalanced stereo audio and RS−232/RS−485 signals. The unit takes up to eight channels of signals and transmits them over eight twisted pair outputs to compatible twisted pair receivers. The TP−185 is also the ideal companion to an eight output matrix switcher − easily converting the outputs to twisted pair.
-
Max. Resolution - WUXGA.
-
One-Source Data - RS−232 or RS−485 data from one source to any or all eight destination receivers.
-
System Range - Up to 100m (320ft). Greater distances possible depending on resolution and cable.
-
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
-
Standard 19” Rack Mount Size - 1U. Rack "ears" included.
Zastosowania
Transmission of video, audio and RS-232 signals for extended distances over standard STP/UTP cables.
Multimedia and presentation source and acceptor selection.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 8 UXGA on 15−pin HD connectors, 8 unbalanced stereo audio 3.5mm mini jacks. |
OUTPUTS: | 8 twisted pair on RJ−45 connectors. |
RANGE: | Up to 100m (328ft). |
RESOLUTION: | Up to WUXGA (1920 x 1200). |
MAX. OUTPUT LEVEL: | Video: 1.6Vpp; Audio: 2.3Vpp. |
CONTROLS: | RS−232 and RS−485 on 3−pin terminal blocks. |
SERIAL BAUD RATE: | Up to 19200kbps. |
SERIAL MODE: | Full−duplex. |
AUDIO BANDWIDTH: | 20Hz to 20kHz @0.5dB. |
AUDIO S/N RATIO: | <−80dB. |
TOTAL GAIN: | 0dB. |
AUDIO COUPLING: | AC. |
AUDIO THD + NOISE: | <0.03%. |
POWER CONSUMPTION: | 100−240V AC, 16VA. |
DIMENSIONS: | 48.26cm x 19.1cm x 1U (19" x 7.52" x 1U) W, D, H. |
WEIGHT: | 3.8kg (8.4lbs) approx. |
ACCESSORIES: | Power cord, Windows® based control software, rack “ears”. |
Skrót właściwości | Nadajnik sygnałów VGA wraz z niesymetrycznym stereo audio wysyłanych skrętką. Wyjście skrętki: RJ-45. |
---|
