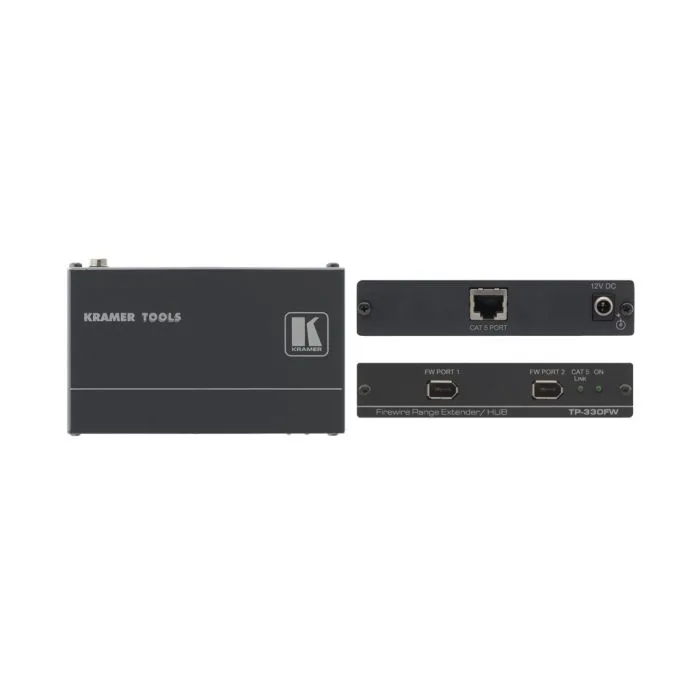

Nadajnik odbiornik Kramer TP-330FW
Nadajnik i odbiornik sygnałów FireWire wysyłanych skrętką.
Wyjście skrętki: RJ-45.
SKU
TP-330FW
The TP−330FW is a twisted pair range extender/hub for FireWire® (IEEE 1394) signals. When used as a pair, one converts a FireWire® signal into a twisted pair signal and the other converts the twisted pair back to a FireWire® signal and simultaneously outputs the twisted pair signal to two FireWire® ports.
-
Max. Data Rate - 400Mbps.
-
System Range - Up to 80m (262ft) with speeds of up to 400Mbps.
-
Cable - STP (shielded twisted pair) or UTP (unshielded twisted pair) such as CAT 5. Do not use skew−free cable.
-
ESD Protection - Kramer’s Spark−Guard™ signal protection circuitry protects against ESD (electrostatic discharge) that can damage digital equipment.
-
Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Zastosowania
Digital video production, editing studios and digital video live broadcasting.
PC FireWire port extensions and long cable drivers.
Przykładowa aplikacja
Specyfikacja
| PORTS: | 2 FireWire® ports on 6−circuit FireWire® 400 connectors; 1 STP/UTP port on an RJ−45 connector. |
| TRANSFER RATE: | 400Mbps. |
| IEEE 1394 STANDARDS: | IEEE 1394a−2000, IEEE 1394−1995 @400Mbps max. |
| ESD LINE PROTECTION: | IEC 61000 4 2 (ESD) 15kV (air), 8kV (contact), IEC 61000 4 5 (lightning) 12A (8/20us), and IEC 61000 4 4 (EFT) 40A (5/50ns). |
| POWER CONSUMPTION: | 12V DC, 60mA. |
| DIMENSIONS: | 12cm x 6.9cm x 2.4cm (4.7" x 2.7" x 0.9") W, D, H. |
| WEIGHT: | 0.4kg (0.88lbs) approx. |
| ACCESSORIES: | Power supply, mounting bracket. |
| Skrót właściwości | Nadajnik i odbiornik sygnałów FireWire wysyłanych skrętką. Wyjście skrętki: RJ-45. |
|---|
