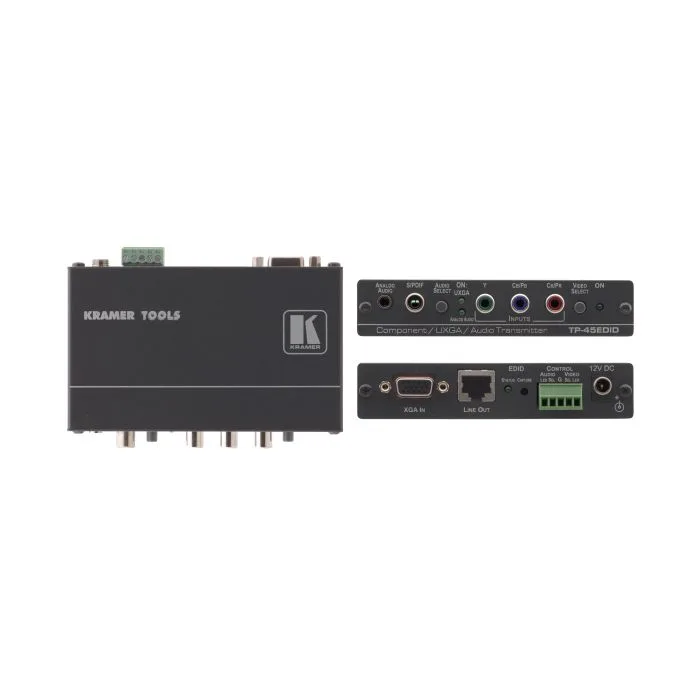

Nadajnik Kramer TP-45EDID

Nadajnik sygnałów komponent wideo i VGA wraz z niesymetrycznym lub cyfrowym audio. Wyjście skrętki: RJ-45.
SKU
TP-45EDID

The TP−45EDID is a high−performance twisted pair transmitter for computer graphics or component video and unbalanced stereo audio signals. It converts the input signals to a twisted pair signal that it transmits to a compatible receiver.

Zastosowania

Presentation and multimedia applications.
Long-range graphics distribution for schools, hospitals, security, and stores.
Security and military applications.

Przykładowa aplikacja

Kramer TP-45EDID

Specyfikacja

VIDEO INPUTS: 1 component video, 1Vpp/75Ω(Y,Pb,Pr) on 3 RCA connectors; 1 XGA on a 15−pin HD connector.
AUDIO INPUTS: 1 unbalanced stereo audio, 0dBu/50kΩ, on a 3.5mm jack; 1 S/PDIF audio on an RCA connector.
POWER CONSUMPTION: 12V DC, 920mA max. (TP−46N, TP−45EDID pair when powered from the TP−45EDID via power connect, CAT 5, 60m); TP−45EDID self current: 110mA.
OUTPUT: 1 twisted pair on an RJ−45 connector (video/audio).
MAX. INPUT LEVEL: XGA: 1.7Vpp on 75Ω, DC coupling; Y,Pb,Pr: 1.05Vpp on 75Ω, AC coupling.
RETURN LOSS: −18dB.
VIDEO RESOLUTION: Up to UXGA, 1080p.
S/N RATIO: 69dB RMS @5MHz.
K-FACTOR: 0.2%.
ISOLATION (CROSSTALK): −43dB @ 5MHz.
AUDIO BANDWIDTH: 20Hz to 20kHz.
TND+NOISE: 0.33% @1kHz.
SAMPLE RATE CONVERSION: 48kHz.
RESOLUTION CONVERSION: 24 bits.
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE: −40° to +70°C (−40° to 158°F).
HUMIDITY: 10% to 90%, RHL non−condensing.
DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7" x 2.81" 1.09") W, D, H.
WEIGHT: 0.3 kg (0.67 lbs) approx.
ACCESSORIES: Power supply.
Specyfikacja techniczna
Skrót właściwości Nadajnik sygnałów komponent wideo i VGA wraz z niesymetrycznym lub cyfrowym audio. Wyjście skrętki: RJ-45.
