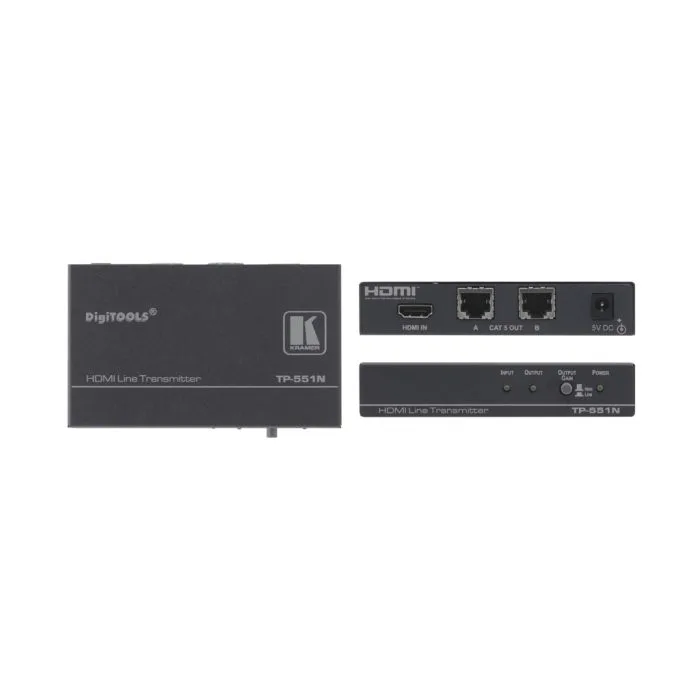

Nadajnik Kramer TP-551N
Nadajnik sygnałów HDMI, wysyłanych skrętką.
Wyjście skrętki: RJ-45.
SKU
TP-551N
! Ograniczona dostępność. Urządzenie zostanie wycofane po wyczerpaniu stanów magazynowych we wszystkich oddziałach Kramer.
The TP−551N is a twisted pair transmitter for HDMI signals. The TP−551N converts an HDMI signal to a twisted pair signal and transmits it to the TP−552N that converts the twisted pair back to an HDMI signal.
-
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
-
HDCP Compliant.
-
HDTV Compatible.
-
DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
-
System Range - Up to 90m (295ft) at 1080i/SXGA, or up to 30m (98ft) at 1080p/UXGA on shielded BC−DGKat524 cable; 90m (295ft) at 1080i, or up to 60m (197ft) at 1080p/UXGA on shielded BC−DGKat623 cable.
-
Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
-
Input/Output Status LEDs.
-
Compact Kramer TOOLS ™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Zastosowania
Home theater, presentation and multimedia applications.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 1 HDMI connector. |
OUTPUTS: | 2 CAT 5 OUT on RJ−45 connectors. |
MAX. DATA RATE: | 4.95Gbps (1.65Gbps per graphic channel). |
COMPLIANCE WITH HDMI STANDARD: | Supports HDMI 1.1 and HDCP. |
POWER CONSUMPTION: | 5V DC, 860mA. |
DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H. |
WEIGHT: | 0.3kg (0.67lbs) approx. |
ACCESSORIES: | Power supply (5V/2A). |
OPTIONS: | HDMI cables: regular − C−HDMI/HDMI; flat − C−HDMI/HDMI/FLAT(1.3); RK−3T 19" rack adapter. |
Skrót właściwości | Nadajnik sygnałów HDMI, wysyłanych skrętką. Wyjście skrętki: RJ-45. |
---|
