| Skrót właściwości | Nadajnik i odbiornik sygnałów HDMI, dwukierunkowego RS-232 i IR, wysyłanych skrętką. Wyjście skrętki: DGKat. |
|---|

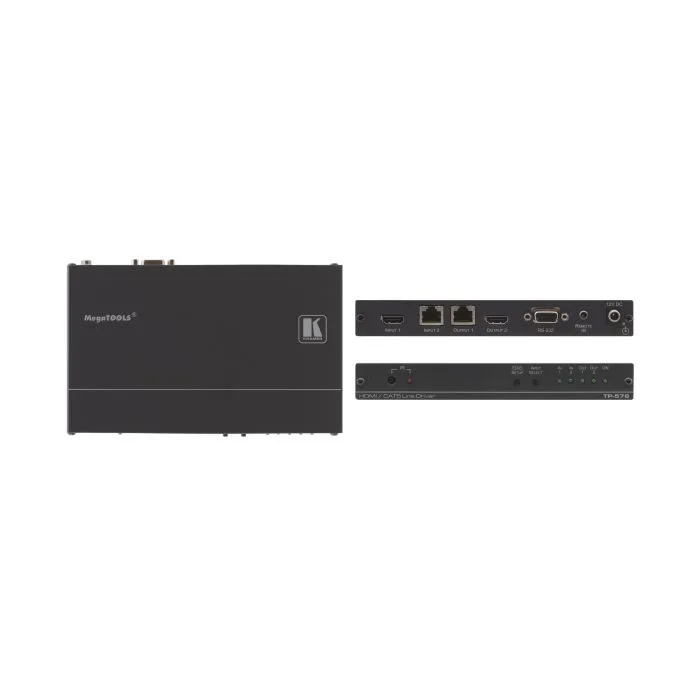

Nadajnik Kramer TP-576
Specyfikacja techniczna
- Skrót właściwości
- Nadajnik i odbiornik sygnałów HDMI, dwukierunkowego RS-232 i IR, wysyłanych skrętką. Wyjście skrętki: DGKat.
Zwiń parametry
Opis produktu
The TP−576 is a DGKat™ twisted pair line driver for HDMI, bidirectional RS−232 and infrared signals. The unit receives an HDMI signal either from a local HDMI source or from a compatible twisted pair transmitter. It decodes the selected signals to the local HDMI, RS−232 and IR outputs and simultaneously transmits them to a compatible twisted pair receiver. Home theater, presentation and multimedia applications.Rental and staging.
Zwiń opis
The TP−576 is a DGKat™ twisted pair line driver for HDMI, bidirectional RS−232 and infrared signals. The unit receives an HDMI signal either from a local HDMI source or from a compatible twisted pair transmitter. It decodes the selected signals to the local HDMI, RS−232 and IR outputs and simultaneously transmits them to a compatible twisted pair receiver.
-
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
-
HDTV Compatible.
-
HDCP Compliant.
-
DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
-
HDMI Support - Deep Color (on the HDMI input), x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD.
-
3D Pass-Through.
-
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
-
HPD Pass Thru - Passes hot plug detect signals from display to source.
-
Active Input/Output LED Indicators.
-
System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.
-
Cable - For optimum range and performance, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
-
Flexible Control - Front panel, RS−232 & IR switching.
-
Power Connect™ System - A single connection to the TP−576 powers the transmitter, receiver and line driver units.
-
Compact MegaTOOLS™ - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.
Zastosowania
Home theater, presentation and multimedia applications.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 1 HDMI connector; 1 twisted pair on an RJ−45 connector. |
| OUTPUTS: | 1 twisted pair on an RJ−45 connector; 1 HDMI connector. |
| PORTS: | 1 bidirectional IR port on a 3.5mm mini jack, 1 bidirectional RS−232 port on a 9−pin D−sub connector (for local control). |
| MAX. DATA RATE: | 4.95Gbps (1.65Gbps per graphic channel). |
| COMPLIANCE WITH HDMI STANDARD: | Supports HDMI and HDCP. |
| RS-232 BAUD RATE: | Up to 38.4kbps. |
| CONTROLS: | EDID SETUP button, input select button. |
| INDICATOR LEDs: | IN 1, IN 2, OUT 1, OUT 2, and ON LEDs. |
| POWER CONSUMPTION: | 12V DC, 950mA. |
| DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95"), W, D, H. |
| WEIGHT: | 0.3kg (0.67lbs) approx. |
| ACCESSORIES: | Power supply, bracket installation kit. |
| OPTIONS: | RK−T2B 19” rack adapter. |
