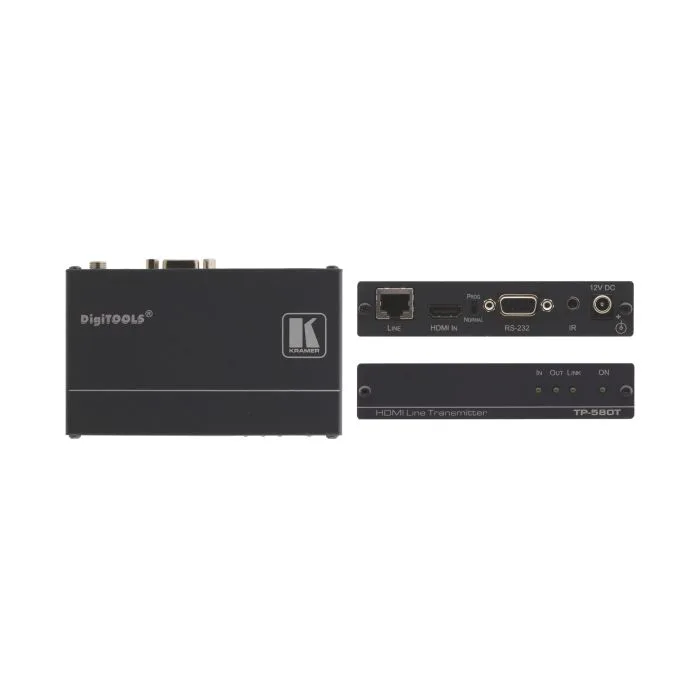

Nadajnik Kramer TP-580T
Nadajnik sygnałów HDMI, dwukierunkowego RS-232 i IR, wysyłanych skrętką.
Wyjście skrętki: RJ-45.
Sygnał skrętki: HDBaseT.
SKU
TP-580T
The TP−580T is a high−performance, HDBaseT twisted pair transmitter for HDMI, bidirectional RS−232 and IR signals. The TP−580T inputs HDMI, RS−232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP−580R receiver.
-
Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
-
HDTV Compatible.
-
HDCP Compliance.
-
HDBaseT™ Technology.
-
HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
-
3D Pass-Through.
-
EDID PassThru - Passes EDID signals between the source and display.
-
2K & 4K Support.
-
Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
-
System Range - Up to 70m (230ft).
-
Cable - For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables.
-
Indicators - Status LEDs for input, output, link and power.
-
Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.
Zastosowania
Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 1 HDMI connector. |
| OUTPUTS: | 1 HDBaseT twisted pair RJ−45 connector. |
| PORTS: | 1 IR on a 3.5mm mini jack, 1 RS−232 on a 9−pin D−sub connector. |
| BANDWIDTH: | 10.2Gbps (3.4Gbps per graphic channel). |
| RS-232 BAUD RATE: | 115200. |
| COMPLIANCE WITH HDMI STANDARD: | Supports HDMI and HDCP. |
| POWER CONSUMPTION: | 12V DC,275mA. |
| OPERATING TEMPERATURE: | 0° to 40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| DIMENSIONS: | 18.8cm x 11.4cm x 2.4cm (7.4" x 4.5" x 1.0") W, D, H. |
| WEIGHT: | 0.6kg (1.4lbs). |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−T2B 19” rack mount. |
| Skrót właściwości | Nadajnik sygnałów HDMI, dwukierunkowego RS-232 i IR, wysyłanych skrętką. Wyjście skrętki: RJ-45. Sygnał skrętki: HDBaseT. |
|---|
