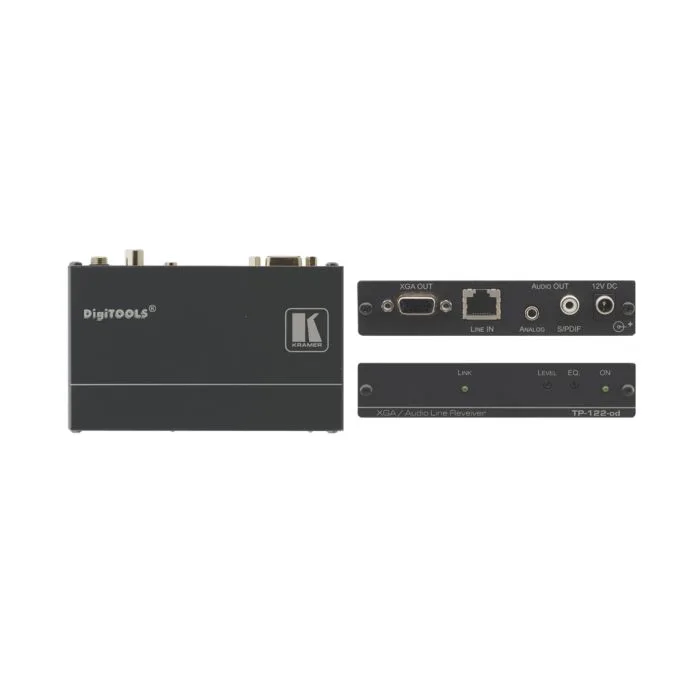

Odbiornik Kramer TP-122-od
Odbiornik sygnałów VGA wraz z analogowym lub cyfrowym audio, wysyłanych skrętką. Zabezpieczenie EMP.
Wyjście skrętki: RJ-45.
SKU
TP-122-od
The TP−122−od is a twisted pair receiver for computer graphics video, stereo and S/PDIF audio signals. The TP−121−od transmitter converts computer graphics video and unbalanced stereo audio inputs into a twisted pair signal and the TP−122−od converts the twisted pair signal back into a computer graphics video, unbalanced stereo and S/PDIF audio outputs.
-
HDTV Compatible.
-
Max. Resolution - WUXGA & 1080p.
-
EMP Protection - Protected from voltage surges induced by the electromagnetic field of nearby lightning. The system does not protect against direct lightning strikes.
-
Twisted Pair Connectors - RJ−45 connectors.
-
Level (Gain) and EQ (Peaking) Controls.
-
System Range - Up to 100m (320ft).
-
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
-
Power Connect™ System - Only one unit in a system, the transmitter or the receiver needs to be connected to a power source when the devices are within 50m (150ft) of each other.
-
Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Zastosowania
Presentation and multimedia applications.
Long range graphics distribution for schools, hospitals, security, and stores.
Przykładowa aplikacja
Specyfikacja
| INPUT: | 1 RJ−45 line in connector. |
| OUTPUT: | Video: 1 VGA/UXGA on a 15−pin HD connector; Audio: 1 audio S/PDIF RCA connector; 1 audio analog 3.5mm mini jack. |
| MAX. OUTPUT LEVEL: | Video: 1V; Audio: 2.5V. |
| MAX. RESOLUTION: | WUXGA & 1080p. |
| S/N RATIO: | Video: 58dB unweighted, 68.3dB @5MHz weighted; Audio: <–80dB. |
| TOTAL GAIN: | Audio: Analog/analog: 0dB., Analog/SPDIF: –12dBFS. |
| CONTROLS: | Level: –7.5dB to +4.4dB, EQ.: 0dB to +33dBu (130m) @50MHz. |
| COUPLING: | AC. |
| THD+N: | Audio: <0.01%. |
| POWER CONSUMPTION: | 12V DC, 350mA. |
| DIMENSIONS: | 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H. |
| WEIGHT: | 0.3kg (0.67lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−3T 19" rack adapter. |
| Skrót właściwości | Odbiornik sygnałów VGA wraz z analogowym lub cyfrowym audio, wysyłanych skrętką. Zabezpieczenie EMP. Wyjście skrętki: RJ-45. |
|---|
