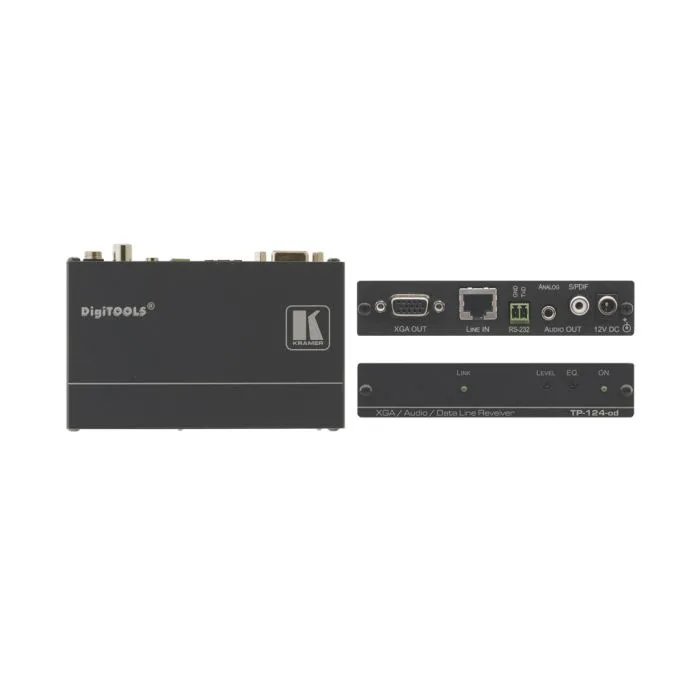

Odbiornik Kramer TP-124-od
Odbiornik sygnałów VGA wraz z analogowym lub cyfrowym audio i sygnałów RS-232, wysyłanych skrętką. Zabezpieczenie EMP.
Wyjście skrętki: RJ-45.
SKU
TP-124-od
The TP−124−od is a twisted pair receiver for computer graphics video, unbalanced stereo audio and RS−232 data signals. The TP−123−od converts computer graphics, audio, and RS−232 inputs to a twisted pair signal, and the TP−124−od converts the twisted pair signal back into computer graphics, audio and RS−232 data signals.
-
Max. Resolution - WUXGA & 1080p.
-
HDTV Compatible.
-
EMP Protection - Protected from voltage surges induced by the electromagnetic field of nearby lightning. The system does not protect against direct lightning strikes.
-
Twisted Pair Connectors - RJ−45 connectors.
-
Audio Outputs - Unbalanced stereo and S/PDIF (24−bit 48kHz) simultaneously.
-
Level (Gain) and EQ (Peaking) Controls.
-
System Range - Up to 100m (300ft), greater distances possible depending on resolution and cable.
-
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
-
Power Connect™ System - A single connection to the transmitter or receiver powers both units when the devices are within 50m (150ft) of each other.
-
Unidirectional RS-232 - Maximum bitrate 19.2kbps.
-
RS-232 Connect™ System - The unit can send RS−232 commands on the twisted pair cable on top of the video signal. All the system units must have RS−232 Connect to use this feature.
-
Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Zastosowania
Presentation and multimedia applications.
Long range graphics distribution for schools, hospitals, security, and stores.
Simple connection to presentation system via a single CAT-5 cable.
Specyfikacja
INPUT: | 1 RJ−45 OUT connector. |
OUTPUTS: | Video: 1VGA/UXGA on a 15−pin HD connector; Audio: 1 audio S/PDIF RCA connector; 1 audio ANALOG 3.5mm mini jack. |
MAX. OUTPUT LEVEL: | Video: 1V; Audio: 2.5V. |
COMMUNICATION: | RS−232 on 2−pin terminal block; maximum bitrate 19200bps. |
CONTROLS: | Level: –7.5dB to +4.4dB,EQ.: 0dB to +33dBu (130m) @50MHz. |
MAX. RESOLUTION: | WXGA & 1080p. |
S/N RATIO: | Video: 58dB unweighted, 68.3dB @5MHz weighted; Audio: <–80dB. |
TOTAL GAIN: | Audio: Analog/analog: 0dB; Analog/SPDIF: –12dBFS. |
COUPLING: | AC. |
THD+N Audio: | <0.01%. |
POWER CONSUMPTION: | 12V DC,320mA. |
DIMENSIONS: | 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H. |
WEIGHT: | 0.3kg (0.67lbs) approx. |
ACCESSORIES: | Power supply. |
OPTIONS: | RK−3T 19" rack adapter. |
Skrót właściwości | Odbiornik sygnałów VGA wraz z analogowym lub cyfrowym audio i sygnałów RS-232, wysyłanych skrętką. Zabezpieczenie EMP. Wyjście skrętki: RJ-45. |
---|
