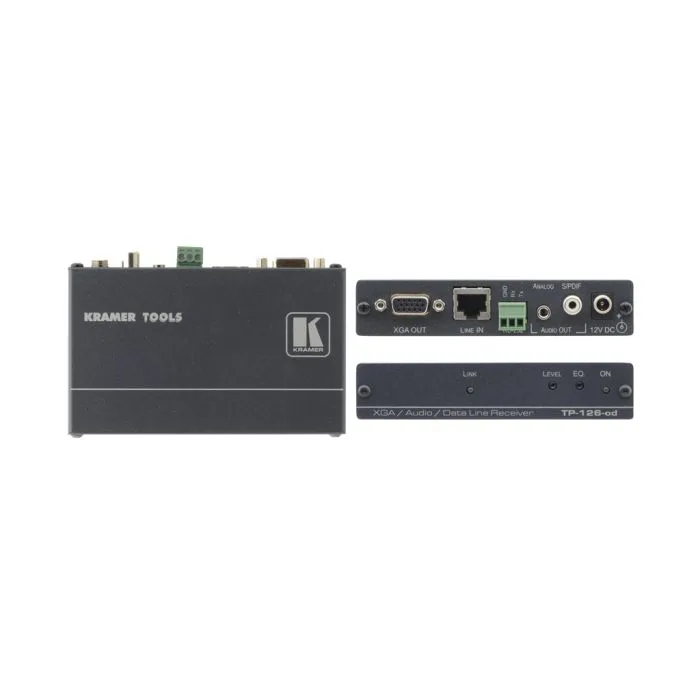

Odbiornik Kramer TP-126-od
Odbiornik sygnałów VGA wraz z analogowym lub cyfrowym audio i dwukierunkowych sygnałów RS-232, wysyłanych skrętką. Zabezpieczenie EMP.
Wyjście skrętki: RJ-45.
SKU
TP-126-od
The TP−126−od is a twisted pair receiver for computer graphics video, unbalanced stereo audio and bidirectional RS−232 data signals. The unit receives a twisted pair signal from the TP−125−od transmitter and converts it back to computer graphics video, audio, and RS−232 data signals.
-
Max. Resolution - WUXGA or 1080p.
-
HDTV Compatible.
-
EMP Protection - Protected from voltage surges induced by the electromagnetic field of nearby lightning. The system does not protect against direct lightning strikes.
-
Twisted Pair Connectors - RJ−45 connectors.
-
Audio Outputs - Unbalanced stereo and S/PDIF (24−bit 48kHz) simultaneously.
-
Level (Gain) & EQ (Peaking) Controls.
-
Horizontal and Vertical Polarity Selection.
-
System Range - Up to 100m (300ft). Greater distances possible depending on signal resolution and cable.
-
Bidirectional RS-232. - Maximum bitrate 19.2kbps.
-
RS-232 Connect™ System - The unit can send RS−232 commands on the twisted pair cable together with the video signal.
-
Compact Kramer TOOLS™ - Three units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Zastosowania
Presentation and multimedia applications.
Long range graphics distribution for schools, hospitals, security, and stores.
Specyfikacja
| INPUTS: | 1 RJ−45 LINE IN connector. |
| OUTPUTS: | Video: 1 UXGA on a 15−pin HD connector; Audio: 1 S/PDIF on an RCA connector, 1 audio ANALOG on a 3.5mm mini jack. |
| MAX. OUTPUT LEVEL: | Video: 1.6V, Audio: 2.3V. |
| CONTROLS: | Level:–7.5dB to +4.4dB,EQ.: 0dB to +33dBm (130m) @50MHz. |
| RS-232 BAUD RATE: | Up to 19200bps. |
| RS-232 MODE: | Full−duplex. |
| BANDWIDTH: | Audio: 20Hz–20kHz @0.5dB. |
| S/N RATIO: | Audio: <–80dB. |
| TOTAL GAIN: | Audio: Analog/analog: 0dB. |
| Analog/SPDIF: | –12dBFS. |
| COUPLING: | AC. |
| THD+N: | Audio: <0.01%. |
| POWER CONSUMPTION: | 12V DC,210mA. |
| DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95"), W, D, H. |
| WEIGHT: | 0.3kg (0.67lbs) approx. |
| ACCESSORIES: | Power supply. |
| Skrót właściwości | Odbiornik sygnałów VGA wraz z analogowym lub cyfrowym audio i dwukierunkowych sygnałów RS-232, wysyłanych skrętką. Zabezpieczenie EMP. Wyjście skrętki: RJ-45. |
|---|
