| Skrót właściwości | Odbiornik sygnałów VGA i RS-232 wraz z stereofonicznym audio wysyłanych skrętką. Wyjście skrętki: RJ-45. |
|---|

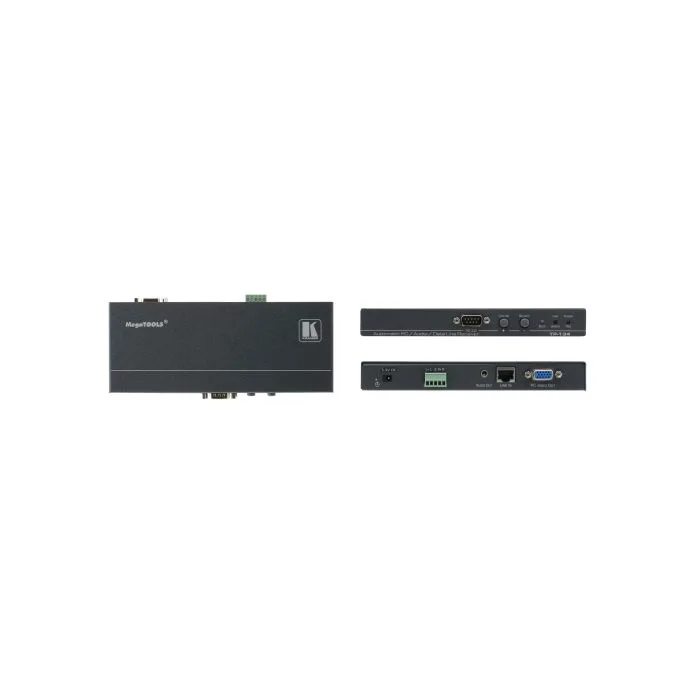

Odbiornik Kramer TP-134
Specyfikacja techniczna
- Skrót właściwości
- Odbiornik sygnałów VGA i RS-232 wraz z stereofonicznym audio wysyłanych skrętką. Wyjście skrętki: RJ-45.
Zwiń parametry
Opis produktu
The TP−134 is a high−performance, extended range twisted pair receiver for computer graphics video, balanced/unbalanced stereo audio and bidirectional RS−232 data signals. The TP−133 converts input signals to twisted pair signals and the TP−134 converts the twisted pair signals back into the original formats. Presentation and multimedia applications.Long-range graphics distribution for schools, hospitals, security and stores.
Zwiń opis
The TP−134 is a high−performance, extended range twisted pair receiver for computer graphics video, balanced/unbalanced stereo audio and bidirectional RS−232 data signals. The TP−133 converts input signals to twisted pair signals and the TP−134 converts the twisted pair signals back into the original formats.
-
Inputs - 1 twisted pair on an RJ−45 connector.
-
Outputs - 1 computer graphics video on a 15−pin HD, 1 unbalanced stereo audio on a 3.5mm, 1 balanced stereo audio on a terminal block.
-
Resolution - Up to WUXGA, 1920x1200.
-
RS-232 Port - Full−duplex, bidirectional transmission.
-
Automatic EQ Compensation - Automatically detects and compensates for the EQ losses in the TP cable. Can also be set manually.
-
Automatic Skew Correction - Automatic detects and corrects the differential delay in the R, B & B color components due to the TP cable. Can also be set manually.
-
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
-
Range - Up to 200m (656ft).
-
Control - Skew: auto or manual (R, G & B); equalization (peaking): auto or manual.
-
Built in Test Pattern Generator - for manually seting R, G & B skew and equalization.
-
Indicators - Blue, Green/Link, Red/Power LEDS to set color and equalization.
-
Compact MegaTOOLS™ - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.
Zastosowania
Presentation and multimedia applications.
Long-range graphics distribution for schools, hospitals, security and stores.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 1 twisted pair on an RJ−45 connector. |
| OUTPUTS: | 1 computer graphics video on a 15−pin HD connector, 1 balanced stereo audio on a 5 pin terminal block, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 RS−232 bidirectional on a 9−pin D−sub connector. |
| CONTROLS: | Skew, equalization. |
| VIDEO RESOLUTION: | Up to WUXGA. |
| AUDIO BANDWIDTH (-3dB): | 20Hz to 20kHz. |
| S/N RATIO: | 84dB unweighted. |
| COUPLING: | AC. |
| AUDIO TND+N: | 0.02% unweighted. |
| RS-232 BAUD RATE: | Up to 115200bps, full−duplex. |
| POWER CONSUMPTION: | 5.3V DC, 760mA. |
| TRANSMISSION RANGE: | Up to 200m (656ft). |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| DIMENSIONS: | 19.05cm x 8.63cm x 2.44cm (7.5" x 3.4" x 0.96") W, D, H. |
| WEIGHT: | 0.33kg (0.73lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−T2B 19” rack adapter. |
