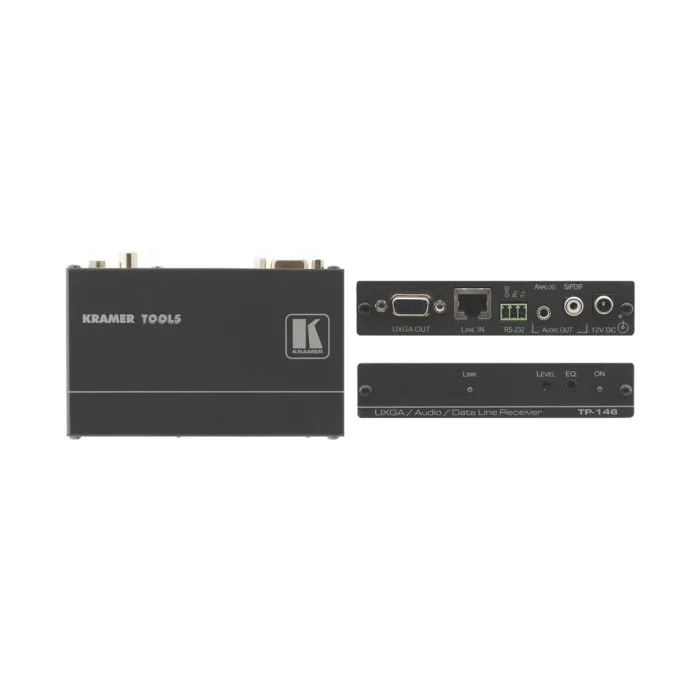

Odbiornik Kramer TP-146
Odbiornik sygnałów VGA i RS-232 wraz z niesymetrycznym stereo audio wysyłanych skrętką.
Wyjście skrętki: RJ-45.
SKU
TP-146
The TP-146 is a twisted pair receiver for computer graphics video, unbalanced stereo audio and bidirectional RS-232 data signals. The TP-146 receives a twisted pair signal from the TP-145 and converts the signal back into the original signal formats plus an additional S/PDIF audio signal.
-
Max. Resolution - WUXGA & 1080p.
-
HDTV Compatible.
-
EDID Capture - Copies and stores the EDID from a display device.
-
Twisted Pair Connectors - RJ-45 connectors.
-
Audio Outputs - Unbalanced stereo and S/PDIF (24-bit 48kHz) simultaneously.
-
Level (Gain) & EQ (Peaking) Controls.
-
Horizontal and Vertical Polarity Selection.
-
System Range - Up to 200m (650ft). Greater distances possible depending on signal resolution and cable.
-
RS-232 Connect™ System - The unit can send bidirectional RS-232 commands on the twisted pair cable on top of the video signal.
-
Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Zastosowania
Presentation and multimedia applications.
Long range graphics distribution for schools, hospitals, security, and stores.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 1 RJ-45 LINE IN connector. |
| OUTPUTS: | Video: 1 UXGA on an 15-pin HD connector, Audio: 1 S/PDIF on an RCA connector, 1 unbalanced stereo on a 3.5mm mini jack. |
| RESOLUTION: | Up to UXGA or 1920x1200. |
| MAX. OUTPUT LEVEL: | Video: 1.6V, Audio: 2.3V. |
| RS-232 BAUD RATE: | Up to 19200bps. |
| RS-232 MODE: | Full-duplex. |
| BANDWIDTH: | Audio: 20Hz to 20kHz @0.5dB. |
| S/N RATIO: | Audio: <–80dB. |
| TOTAL GAIN: | Audio: Analog/analog: 0dB; Analog/ S/PDIF: –12dBFS. |
| COUPLING: | AC. |
| THD+N: | Audio: <0.01%. |
| CONTROLS: | Level: –7.5dB to +4.4dB, EQ.: 0dB to +33dBm @50MHz (130m), internal polarity and sync mode switches. |
| INDICATOR LEDS: | Link, ON. |
| POWER CONSUMPTION: | 12V DC, 370mA. |
| DIMENSIONS: | 12.1cm x 7.2cm x 2.4cm (4.8" x 2.8" x 1.0") W, D, H. |
| WEIGHT: | 0.18kg (0.4lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK-3T 19" rack adapter. |
| Skrót właściwości | Odbiornik sygnałów VGA i RS-232 wraz z niesymetrycznym stereo audio wysyłanych skrętką. Wyjście skrętki: RJ-45. |
|---|
