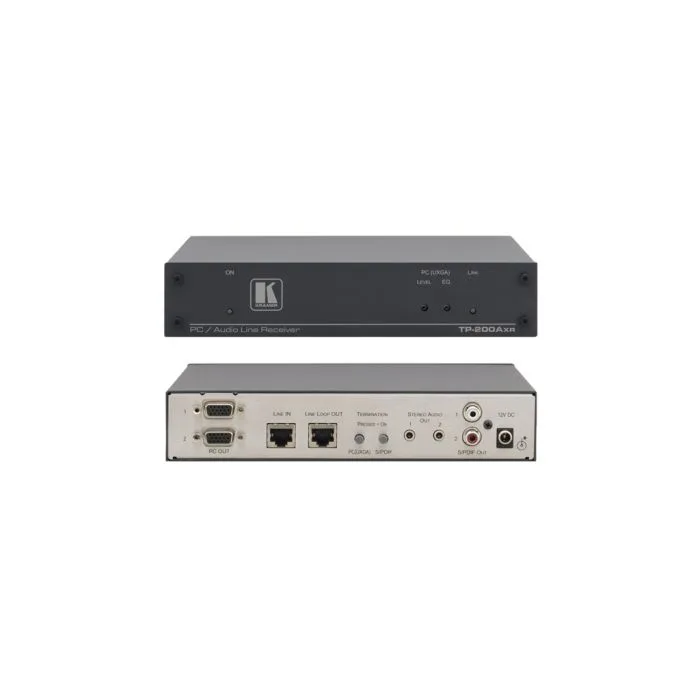

Odbiornik Kramer TP-200AXR
Odbiornik sygnałów VGA wraz z analogowym, lub cyfrowym audio, wysyłanych skrętką.
Wyjście skrętki: RJ-45.
SKU
TP-200AXR
The TP−200AXR is a twisted pair receiver for computer graphics video and unbalanced stereo signals. The TP−100AXR converts the input signals into a twisted pair signal and the TP−200AXR converts the twisted pair signal back into two computer graphics signals, as well as two stereo audio plus two S/PDIF audio signals.
-
Max. Resolution - WUXGA & 1080p
-
HDTV Compatible.
-
Twisted Pair Input - RJ−45 connector.
-
Level (Gain) & EQ (Peaking) Controls.
-
Audio - S/PDIF (RCA) & stereo audio (3.5mm) connectors.
-
Looping CAT 5 Input.
-
Selectable Input Signal Termination.
-
Sync Polarity Settings - H & V switches for improved display compatibility with the CAT 5 outputs.
-
System Range - Up to 200m (640ft). Greater distances possible depending on resolution and cable.
-
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
-
Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
-
Desktop Size - Compact size. 2 units can be rack mounted side−by−side in a 1U rack space with an optional RK−T1 adapter.
Zastosowania
Presentation and multimedia applications.
Long-range graphics distribution for schools, hospitals, security, and stores.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 1 RJ−45 LINE IN connector. |
OUTPUTS: | 1 RJ−45 line loop out, 2 VGA on 15−pin HD connectors, 2 S/PDIF on RCA connectors, 2 audio analog 3.5mm mini jacks. |
MAX. OUTPUT LEVEL: | Video: 1.8V, audio: 2.9V. |
CONTROLS: | Level: –7dB to +4dB; EQ.: 0dB to +16dB (60m) @50MHz. |
RESOLUTION: | Up to WUXGA. |
BANDWIDTH (-3dB) : | 20kHz. |
S/N RATIO: | Video: 60dB; Audio: <89dB. |
TOTAL GAIN: | Analog/analog: 0dB. |
Analog/SPDIF: | –12dBFS. |
COUPLING: | AC. |
THD+N: | Audio: 0.25%. |
POWER CONSUMPTION: | 12V DC, 860mA. |
DIMENSIONS: | 21.5cm x 16.3cm x 4.4cm (8.6" x 7" x 1.8") W, D, H. |
WEIGHT: | 1.1kg (2.4lbs). |
ACCESSORIES: | Power supply. |
OPTIONAL: | RK−T1 19” rack mount adapter. |
Skrót właściwości | Odbiornik sygnałów VGA wraz z analogowym, lub cyfrowym audio, wysyłanych skrętką. Wyjście skrętki: RJ-45. |
---|
