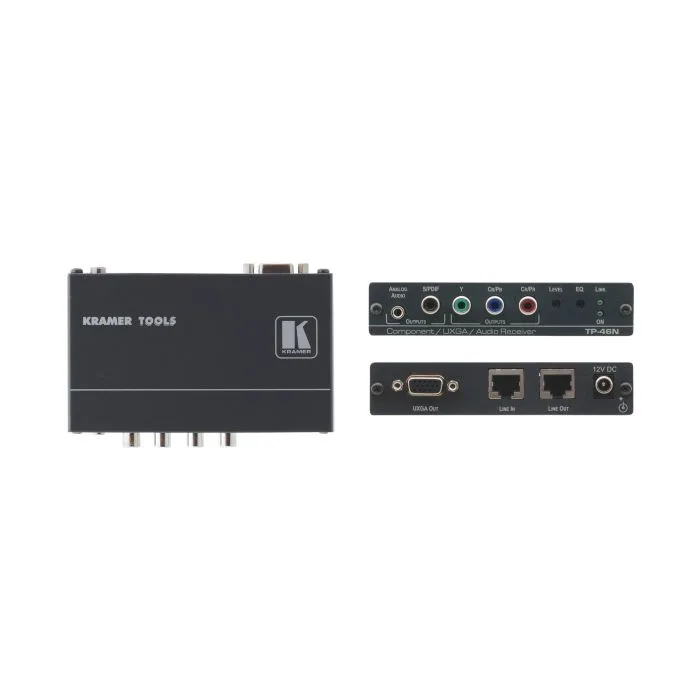

Odbiornik Kramer TP-46N
Specyfikacja techniczna
- Skrót właściwości
- Odbiornik sygnałów komponent wideo i VGA wraz z niesymetrycznym lu cyfrowym audio. Wyjście skrętki: RJ-45.
Zwiń parametry
Opis produktu
The TP−46N is a twisted pair receiver for component video (YUV) or computer graphics video and unbalanced stereo audio or S/PDIF audio signals. The TP−45 transmitter converts an audio and video signal to a twisted pair signal and the TP−46N converts the twisted pair signal back into audio and video signals. Presentation and multimedia applicationsLong range graphics distribution for schools, hospitals, security, and storesSecurity and military applications
Zwiń opis
The TP−46N is a twisted pair receiver for component video (YUV) or computer graphics video and unbalanced stereo audio or S/PDIF audio signals. The TP−45 transmitter converts an audio and video signal to a twisted pair signal and the TP−46N converts the twisted pair signal back into audio and video signals.
-
HDTV Compatible.
-
Max. Resolution - WUGXA (15−pin HD) & 1080p (component).
-
Level (Gain) & EQ (Peaking) Controls.
-
Power Connect™ System - Only one unit in a system, the transmitter or the receiver needs to be connected to a power source when the devices are within 50m (150ft) of each other.
-
Link LED - Indicates the receiver is receiving a signal.
-
System Range - Up to 100m (330ft).
-
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
-
Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Zastosowania
Presentation and multimedia applications
Long range graphics distribution for schools, hospitals, security, and stores
Security and military applications
Przykładowa aplikacja
Specyfikacja
| INPUT: | 1 CAT 5 LINE IN on an RJ−45 connector (video/audio). |
| OUTPUTS: | 1 CAT 5 line extension on an RJ−45 connector (video/audio); 1 VGA/UXGA 1Vpp/75Ω on a 15−pin HD connector; 1 stereo analog audio, 0dBu/1kΩ, 0.5V/75Ω, on a 3.5mm jack; 1 digital S/PDIF audio on an RCA connector; 1 component 1Vpp/75Ω (Y, Pb, Pr) on 3 RCA connectors. |
| MAX. VIDEO INPUT LEVEL: | VGA: 1.2Vpp on 75Ω, DC coupling; Y,Pb,Pr: 1.05Vpp on 75Ω, AC coupling. |
| MAX. VIDEO OUTPUT LEVEL: | VGA: 1.5Vpp on 75Ω, DC coupling; Y,Pb,Pr: 1.25Vpp on 75Ω, DC coupling. |
| RETURN LOSS: | −18dB. |
| MAX. RESOLUTION: | Up to UXGA; 1080p. |
| VIDEO S/N RATIO: | 61dB RMS unweighted. |
| K-FACTOR: | 0.2%. |
| VIDEO ISOLATION (CROSSTALK): | −43dB @5MHz. |
| MAX. INPUT LEVEL ANALOG AUDIO: | 4dBu on 50kΩ, AC coupling. |
| MAX. OUTPUT LEVEL ANALOG AUDIO: | 4dBu on 1kΩ, DC coupling. |
| AUDIO BANDWIDTH: | 20Hz to 20kHz, @0dBu. |
| THD+NOISE: | 0.33% @0dBu @1kHz. |
| MAX. INPUT LEVEL S/PDIF: | 1Vpp on 75Ω, AC coupling. |
| MAX. OUTPUT LEVEL S/PDIF: | 0.7Vpp on 75Ω, AC coupling. |
| SAMPLE RATE CONVERSION: | 48kHz. |
| RESOLUTION CONVERSION: | 24 bits. |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| POWER CONSUMPTION: | 12V DC, 280mA. |
| DIMENSIONS: | 12cm x 7.15cm x 2.76cm (4.7" x 2.81" 1.09") W, D, H. |
| WEIGHT: | 0.3kg (0.67lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−3T 19" rack adapter. |
