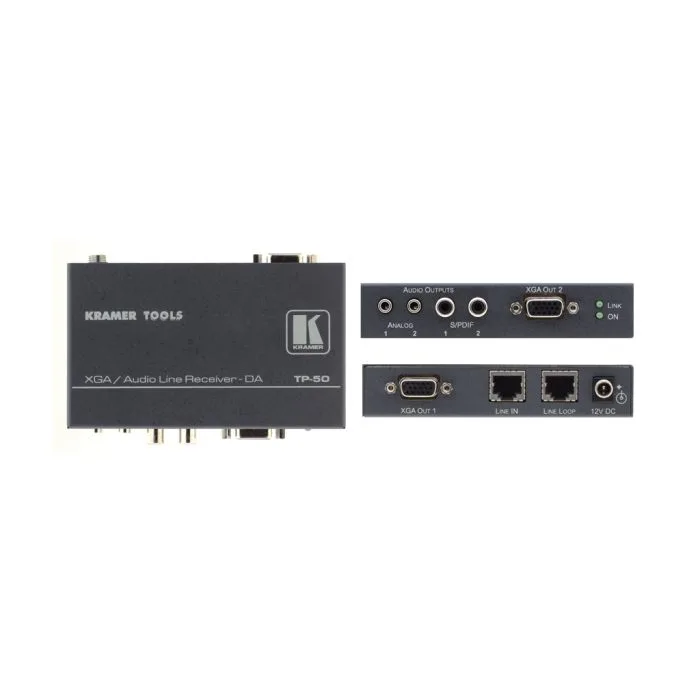

Odbiornik Kramer TP-50
Odbiornik 1:2 sygnałów VGA wysyłanych skrętką wraz z analogowym lub cyfrowym audio.
Wyjście skrętki: RJ-45.
SKU
TP-50
The TP−50 is a twisted pair receiver for computer graphics video and unbalanced stereo audio or S/PDIF audio signals. The unit converts the twisted pair signal back into two computer graphics video, stereo audio and S/PDIF audio signals simultaneously.
-
Resolution - Up to UGXA (15-Pin HD).
-
Looping CAT 5 Input (RJ-45)
-
Level (Gain) & EQ (Peaking) Controls.
-
H & V Sync Polarity Settings.
-
Power Connect™ System - Only one unit in a system, either the transmitter or the receiver needs to be connected to a power source.
-
Link LED - Indicated the receiver is receiving a signal.
-
System Range - Up to 100 meters (330’).
-
Cable - UTP (unshielded twisted pair) such as CAT5.
-
Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter. Additional rack adapters with other configurations are also available.
Zastosowania
Presentation and multimedia applications
Long range graphics distribution for schools, hospitals, security, and stores
Przykładowa aplikacja
Specyfikacja
INPUTS: | 1 CAT5 on an RJ-45 connector, for differential XGA and S/PDIF audio (line input) |
OUTPUTS: | 2 XGA outputs on HD15F connectors 1 LINE LOOP on an RJ-45 connector 2 stereo unbalanced audio outputs on 3.5mm phone jacks 2 S/PDIF outputs on RCA connectors |
MAX. OUTPUT LEVEL: | VIDEO: 2Vpp @max gain AUDIO: 4.6Vpp (analog) |
VIDEO RESOLUTION: | Up to UXG |
AUDIO BANDWIDTH: | 22kHz |
DIFF. GAIN: | 4.7% |
DIFF. PHASE: | 0.3 Deg. |
K-FACTOR: | <0.05% |
S/N RATIO: | VIDEO: 62.5dB AUDIO: 69.2dB |
CONTROLS: | Video level: -9.5dB to +2.2dB; video EQ: 0 to +26.3dB @50MHz |
COUPLING: | VIDEO: DC AUDIO: Input: AC Output: Analog:DC; S/PDIF: AC |
AUDIO THD + NOISE: | 0.035% @1kHz |
AUDIO 2nd HARMONIC: | 0.003% @1kHz |
POWER SOURCE: | 12V DC, 800mA |
DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95"), W, D, H |
WEIGHT: | 0.3kg (0.67lbs.) approx. |
ACCESSORIES: | Power supply |
OPTIONS: | 19" rack adapters |
Skrót właściwości | Odbiornik 1:2 sygnałów VGA wysyłanych skrętką wraz z analogowym lub cyfrowym audio. Wyjście skrętki: RJ-45. |
---|
