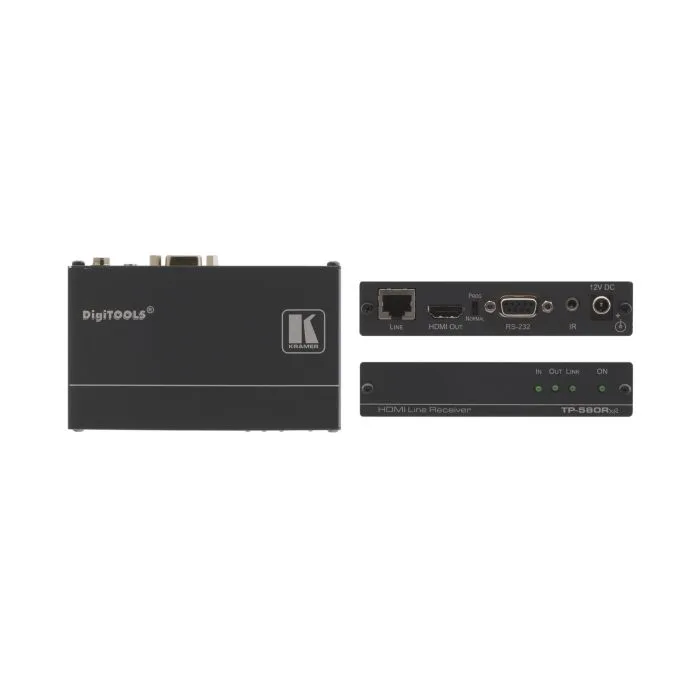

Odbiornik Kramer TP-580RXR

The TP−580RXR is an extended range, HDBaseT twisted pair receiver for HDMI, bidirectional RS−232 and IR signals. The TP−580RXR receives an HDBaseT twisted pair signal from the TP−580TXR and converts it back into HDMI, RS−232 and IR signals.

• Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliance.
• HDBaseT™ Technology.
• HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
• 3D Pass-Through.
• EDID PassThru - Passes EDID signals between the source and display.
• 2K & 4K Support.
• Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
• System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) Ultra mode (1080p @60Hz @24bpp) when using BC−DGKat623 cables.
• Cable - For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges.
• Indicators - Status LEDs for input, output, link and power.
• Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.

Zastosowania

Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios.

Przykładowa aplikacja

Specyfikacja
