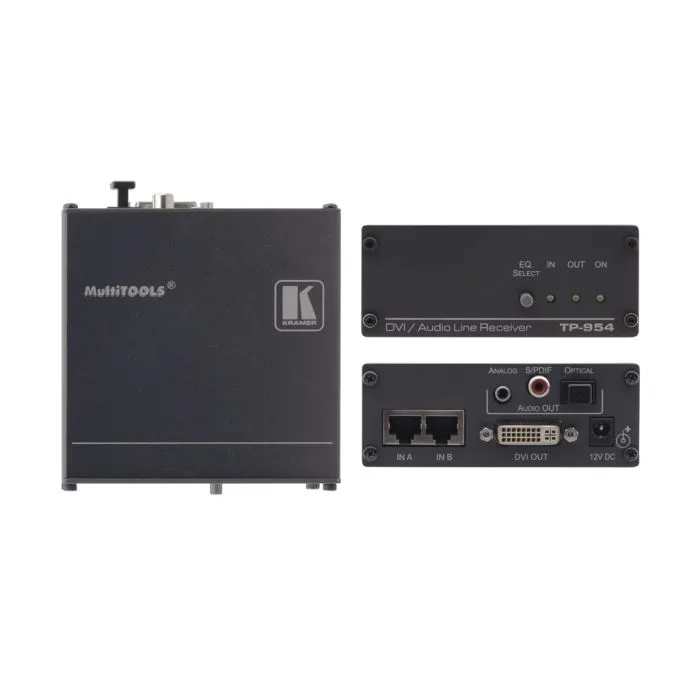

Odbiornik Kramer TP-954
Odbiornik sygnałów DVI wraz z analogowym lub cyfrowym audio wysyłanych skrętką.
Wyjście skrętki: RJ-45.
SKU
TP-954
The TP−954 is a receiver for twisted pair signals. The TP−953 converts DVI and unbalanced stereo, S/PDIF, or TOSLINK® audio signals to a twisted pair signal and the TP−953 converts the twisted pair signal back into into DVI and unbalanced stereo S/PDIF and TOSLINK® audio simultaneously.
-
Max. Data Rate - 1.65Gbps.
-
Max. Resolution - WUXGA & 1080p.
-
HDTV Compatible.
-
HDCP Compliant
-
DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
-
Inputs - 2 CAT 5.
-
EQ (Gain) - On/off select.
-
Audio Outputs - Stereo, S/PDIF, TOSLINK®.
-
Video Output - 1 DVI.
-
Indicator LEDs - Input & Output.
-
System Range - Up to 90m (295ft) at XGA or up to 30m (98ft) at WUXGA on shielded BC−DGKat524 cable.
Up to 60m (197ft) at SXGA on shielded BC−DGKat623 cable.
Up to 60m (197ft) at SXGA on shielded BC−DGKat723 cable. -
Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
-
Compact MultiTOOLS® - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−1 universal rack adapter.
Zastosowania
Home theater, presentation and multimedia applications.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 2 CAT 5 IN on RJ−45 connectors. |
| OUTPUTS: | 1 DVI on a 24−pin Molex connector,1 analog audio on a 3.5mm mini jack,1 S/PDIF on a RCA connector,1 optical on a TOSLINK® connector. |
| MAX. DATA RATE: | Supports up to 1.65Gbps per graphic channel. |
| CONTROLS: | EQ. select pushbutton. |
| INDICATORS: | IN, OUT, ON LEDs (green). |
| POWER CONSUMPTION: | 12V DC, 380mA. |
| DIMENSIONS: | 10.7cm x 10.4cm x 4.4cm (4.2" x 4.1" x 1.7") W, D, H. |
| WEIGHT: | 0.33kg (0.73lbs). |
| ACCESSORIES: | Power supply. |
| OPTIONS: | 19” rack mount adapter. |
| Skrót właściwości | Odbiornik sygnałów DVI wraz z analogowym lub cyfrowym audio wysyłanych skrętką. Wyjście skrętki: RJ-45. |
|---|
