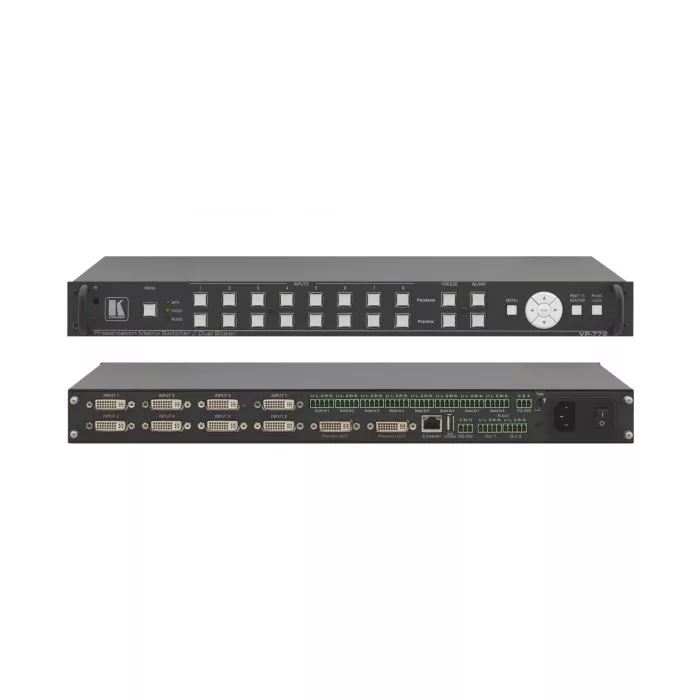

Prezentacyjny podwójny skaler Kramer VP-772

8 Input ProScale Presentation Dual Scaler with FX and 4K Output Option.
SKU
VP-772

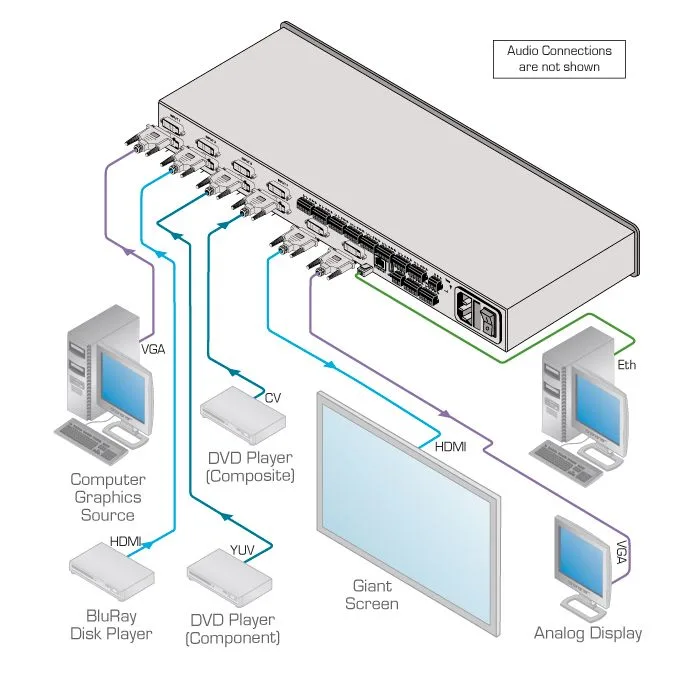

VP−772 is an eight−input high−quality dual scaler with special effect transitions for the rental and staging and the live events market and for other applications where a dual−scaler is needed, with an option to output in 4K30 UHD (3840x2160) in single output mode. It features DVI−U inputs (including analog, DVI and HDMI support) and balanced stereo audio. The unit scales and processes the selected video and audio inputs, and outputs to two independent DVI−I outputs (program and preview) together with two balanced stereo audio outputs.

  • PixPerfect™ Scaling Technology — Kramer’s extremely high performance, state–of–the–art scaling technology with extensive high–quality pull–down and de–interlacing algorithms, and full up–and down–scaling of the video inputs.
  • K–IIT XL™ Picture–in–Picture Image Insertion Technology — Ultra–stable picture–in–picture, picture–and–picture, and split screen capability. Any video source can be inserted into or positioned next to any other video source with full window positioning and sizing controls.
  • Seamless Video Switching — With cuts or built–in special effect transitions, including horizontal, vertical, diagonal circle and chessboard wipes, cross–fading, and more.
  • Dual Scalers — For “live” seamless transitions from one source to another with two independent outputs: a PREVIEW OUT and a PROGRAM OUT. The PREVIEW output, including an OSD menu for making adjustments, is used for determining how the scaled output looks before displaying live during a presentation.
  • 8 Preview Input Buttons — For switching a selected input to the PREVIEW output and 8 PROGRAM input buttons for switching a selected input to the PROGRAM output.
  • Output Resolutions — Up to 4K30 UHD (3840x2160) for single output mode (non–dual scaler); HDTV and computer graphics resolutions with selectable refresh rates.
  • Multi–Format Operation — Selectable HDMI, VGA, YUV or CV on each DVI–U input and VGA or HDMI on each DVI–I output.
  • Audio–Follow–Video & Breakaway Options
  • Advanced De–interlacing Functions — Including 3D comb filtering, film mode, diagonal correction and motion detection.
  • Multiple Aspect Ratio Selections — Follow input, follow output, best fit, letterbox.
  • Built–in Proc–Amp — With enhanced functions such as color correction, gamma and dither.
  • Embedded HDMI Audio Support — As well as eight balanced stereo audio inputs and two balanced stereo outputs.
  • Input & Output Audio Level Adjustment.
  • Selectable Power Save Modes — For energy–efficient usage.
  • HDCP Compliant.
  • Luma & Chroma Keying.
  • Built–In Test Patterns — For screen setup and alignment.
  • Advanced EDID Management — Native resolution and color depth per input. Analyzes the connected output’s EDID for optimal scaling.
  • Input & Output Color Space Control.
  • Supports HDMI Deep Color — For inputs and output.
  • On–Screen Display (OSD) — For easy setup and adjustment, accessible via the IR remote control and via the front–panel buttons.
  • Non–Volatile Memory — Saves last settings.
  • Firmware Upgrading — Via USB (via memory stick) and Ethernet.
  • Flexible Control Options — Front panel buttons, Ethernet, IR remote control transmitter, RS–485 (allowing future optional T–bar control), RS–232 serial commands transmitted by a touch screen system, PC, or other serial controller.
  • Worldwide Power Supply — 100–240V AC.
Specyfikacja techniczna
Standardy 4K@30Hz (4:2:0), DVI
Wejścia HDMI, DVI-U, VGA, Component YPbPr, Composite CV
Wyjścia HDMI, DVI, VGA
Audio Balanced
Sterowanie Ethernet, USB, RS-232, RS-485
Rozmiar 19" 1U
Krótki opis 8 Input ProScale Presentation Dual Scaler with FX and 4K Output Option.
