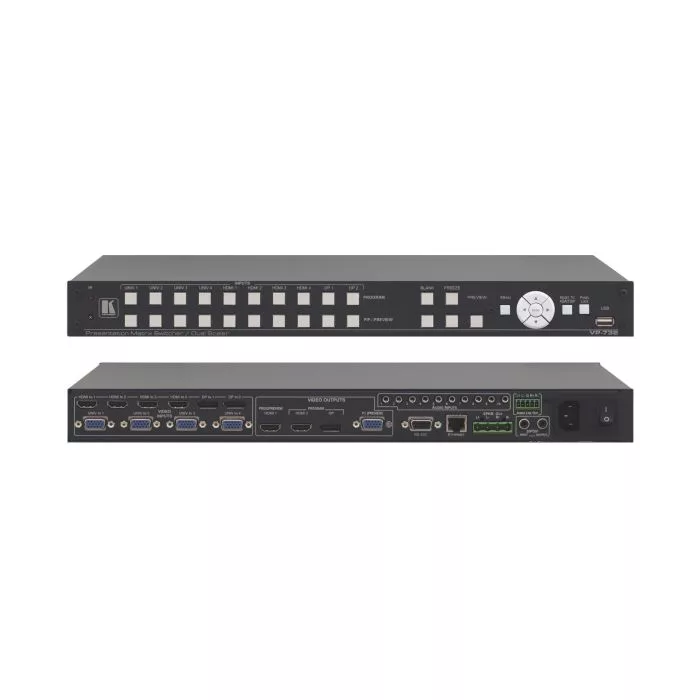

Prezentacyjny przełącznik ze skalerem Kramer VP-732

10–input ProScale™ Presentation Matrix Switcher/4K30 UHD Scaler with Preview & Program Outputs.
SKU
VP-732

VP−732 is a 10−input presentation switcher/dual scaler with four HDMI, two DisplayPort and four user−definable (universal) analog video inputs. It up− and down−scales to selectable graphics or HDTV output resolutions to preview and program outputs (up to 4K30 UHD on the program output) and provides ultra−fast fade−thru−black switching between sources. VP−732 supports analog and embedded audio inputs and outputs and includes rich audio functionality and a stereo loudspeaker output.

  • Kramer’s PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high quality scaling technology.
  • Fast Fade–Thru–Black (FTB™) Switching — For smooth, glitch–free switching. The output signal provides constant sync so the display never glitches.
  • K–IIT XL™ Picture–in–Picture Image Insertion Technology — Ultra–stable picture–in–picture, picture–and–picture, and split screen capability. Any input source can be inserted into or positioned next to any other source or vice versa with window positioning and sizing controls.
  • HDCP Compliant.
  • HDTV Compatible.
  • Dual Scalers with Independent Outputs.
  • 10 Program & 10 Preview/PIP Input Select Buttons — For quick selection of the program/preview/PIP source.
  • Output Resolutions — With selectable refresh rates: up to 4K30 UHD on the program output, and up to 720p on the preview output.
  • Scaled Video Outputs — On 2 HDMI, 1 DP and 1 15–pin HD computer graphics connectors.
  • Multiple Aspect Ratio Selections.
  • Analog Audio Inputs — 10 on 3.5mm connectors.
  • Audio Breakaway and Audio–Follow–Video Support.
  • Selectable Audio Delay.
  • Embed/De–embed Audio — On the HDMI and DisplayPort inputs and outputs.
  • Advanced Noise Reduction Features — Improve video quality by reducing artifacts such as block, chroma and mosquito noise.
  • Powerful Audio Features — With DSP technology including audio equalization, mixing, delay and so on.
  • Stereo Speaker Output — 10W per channel into 8Ω, on a 4–pin terminal block connector.
  • Built–in Video Proc–Amp — Color, hue, sharpness, contrast, and brightness are set individually for each input.
  • Function Buttons — BLANK and FREEZE buttons for both preview/PIP and program outputs.
  • Firmware Upgrade — Ethernet–based, via a user–friendly software upgrade tool.
  • OSD (On–Screen Display) — For user–friendly control and adjustments.
  • Built–in Web Server — Built–in Web pages for full control via Ethernet.
  • Advanced EDID Management.
  • Scales & Zooms.
  • Non–Volatile Memory — Saves final settings and setup configurations.
  • Flexible Control Options — Front panel buttons, IR remote control, RS–232, Ethernet with Web browser.
  • Worldwide Power Supply — 100–240V AC.
Specyfikacja techniczna
Standardy 4K@30Hz (4:2:0), HDCP, HDTV, HDMI
Wejścia HDMI, VGA, Component YUV, Composite CV, DP
Wyjścia HDMI, VGA, DP
Audio Unbalanced, S/PDIF
Sterowanie USB
Rozmiar 19" 1U
Krótki opis 10–input ProScale™ Presentation Matrix Switcher/4K30 UHD Scaler with Preview & Program Outputs.
