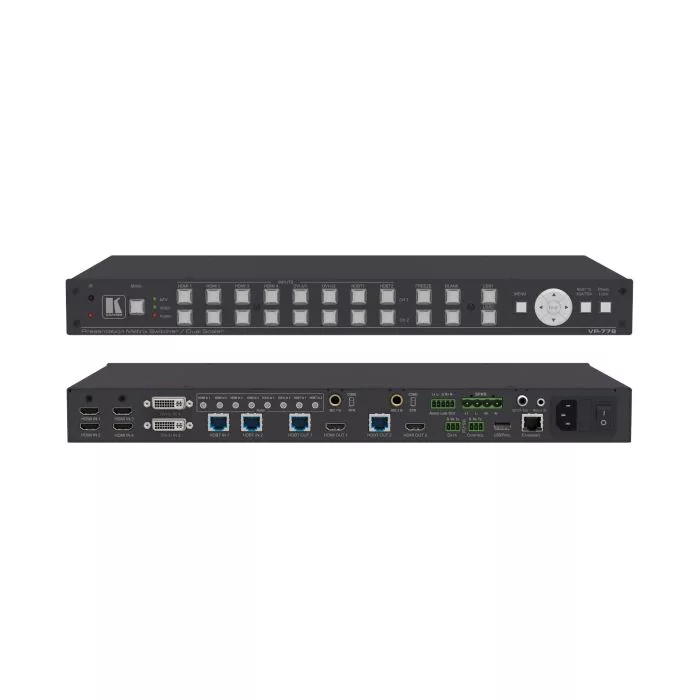

Prezentacyjny przełącznik ze skalerem Kramer VP-778

8–Input Presentation Matrix Switcher/Scaler with Seamless Video Cuts and 4K30 Output Support.
SKU
VP-778

VP−778 is a presentation matrix switcher/scaler that can be configured as a single 4K output (4K@30Hz UHD [3840x2160]) or dual HD scaler with full PiP capabilities. It can scale to two independent HDMI outputs, each with a parallel HDBaseT output. VP−778 includes both analog and embedded audio inputs and outputs and audio DSP features. It also features two microphone inputs and digital & analog balanced stereo and amplified speaker outputs. VP−778 can be controlled using built−in web pages, RS−232 and IR.

  • Pix Perfect™ Scaling — State–of–the–art Kramer technology.
  • K–IIT XL™ Picture–in–Picture Image Insertion Technology — Ultra–stable picture–in–picture, picture–and–picture and split–screen.
  • Seamless Video Switching — Swap or follow (transition type) and cut or fade (transition effect).
  • Dual Scalers — “Live” seamless transitions with two independent outputs.
  • 8 Input Buttons per Channel.
  • Main and PiP Window Customization — In overlay mode.
  • Projection Setups — Front, back, ceiling front and ceiling back.
  • Output Resolutions — Up to 4K@30Hz UHD (3840x2160) in single–window mode, HDTV and computer graphics resolutions with selectable refresh rates.
  • Inputs — Choice of HDMI, VGA, YUV, or CV on two DVI–U inputs, 4 HDMI and 2 HDBaseT inputs.
  • Two Programmable User Buttons — For passing serial commands.
  • Serial Comms Matrix — Up to eight sets of configurable unidirectional connections for passing serial data from source to destination.
  • HDBaseT™ Technology — Max. data rate of 6.75Gbps (2.25Gbps per graphic channel).
  • System Range (HDBaseT™) — Up to 130m (430ft) in normal mode; up to 180m (590ft) in ultra–mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.
  • Cables — For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VP–778.
  • Audio — Balanced stereo audio inputs, two unbalanced microphone inputs, digital stereo and balanced stereo outputs, input/output audio level adjustment, and audio DSP.
  • Built–in 2x10W Power Amplifier — Speaker outputs on a 4–pin terminal block connector.
  • Microphone — Talkover or mix modes.
  • Auto Switching — Automatically scans inputs based on a predefined priority and selects first live input found or last connected.
  • Audio–Follow–Video (AFV) & Breakaway.
  • Advanced De–interlacing — 3D comb filtering, film mode, diagonal correction, and motion detection.
  • Multiple Aspect Ratio Selections.
  • Built–in Proc–Amp — With enhanced functions such as color correction, gamma, dither, and noise reduction.
  • Power Management Modes — Save energy and money.
  • HDCP Compliance.
  • Luma — and Chroma–Keying.
  • Advanced EDID Management — Native resolution and color depth modeline per input.
  • Built–in Test Patterns — For screen setup and alignment.
  • Output EDID Analysis — For optimal scaling.
  • Input & Output Color Space Control.
  • HDMI Deep Color.
  • On–Screen Display (OSD) — Provides easy setup and adjustment.
  • Non–Volatile Memory — Retains settings.
  • Firmware Upgrade Input — Via USB memory stick.
  • Various Control Options — Front panel buttons, Ethernet web page, RS–485, IR, RS–232 serial commands transmitted by a touch screen system, PC, or other serial controller.
Specyfikacja techniczna
Standardy 4K@30Hz (4:2:0), HDBaseT
Wejścia HDMI, HDBT
Wyjścia HDMI, HDBT, 4K UHD HDMI
Audio Balanced, Unbalanced, S/PDIF
Sterowanie USB-A, RS-232, IR
Seria 19" 1U
Skrót właściwości 8–Input Presentation Matrix Switcher/Scaler with Seamless Video Cuts and 4K30 Output Support.
