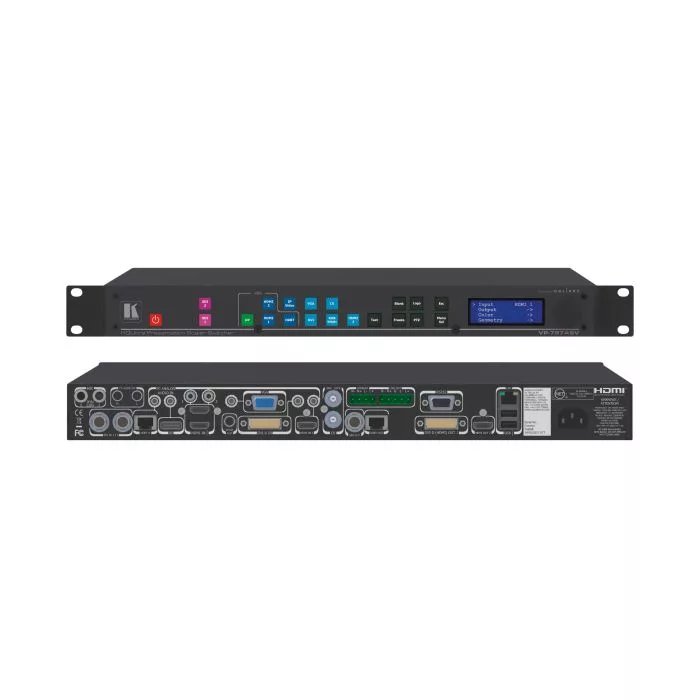

Prezentacyjny przełącznik ze skalerem Kramer VP-797ASV

12–Input 4K60 4:2:0 HQUltra HDBaseT and Legacy Presentation Switcher / Scaler with Ultra–Fast Input Switching, Analog Audio, 3G HD–SDI, Genlock, H.264 Streaming Input.
SKU
VP-797ASV

VP−797ASV is a universal 4K@60Hz (4:2:0) presentation scaler−switcher for HDMI, DisplayPort, HDBaseT, VGA, composite, DVI−U, 3G HD−SDI and analog audio and H.264 video streaming. Its HQUltraFast technology switches in typically a quarter of a second.

  • HQUltra Scaling — Low–latency, 4K UHD best–in–class, proprietary scaling algorithms.
  • HQUltraFast Switching — Proprietary technology for typical 0.25 second input channel switching.
  • H.264 1080p Streaming Video Input — Via network port.
  • HDCP Compliant.
  • Resolution Support. — Up to 4K@60Hz (4:2:0) UHD.
  • Genlock Input — For live events and professional broadcast installations.
  • Ease of Setup — Front panel jog–wheel and LCD display for fast easy set–up in the field.
  • Color Calibration — For all source types including RGB controls, saturation & hue.
  • Pan–Tilt–Zoom Control.
  • Built–in Test Patterns — For easy projector setup.
  • Supports Customized Video Logo.
  • Flexible Aspect Ratio Conversion.
  • Audio Handling — Audio de–embed from H.264 streaming, 3G HD–SDI, HDMI, DisplayPort, and HDBaseT inputs to analog and S/PDIF; re–embed to 3G HD–SDI, HDMI and HDBaseT outputs.
  • Analog Audio — Up to 8 unbalanced stereo inputs, two microphone inputs with phantom power and an audio mixer.
  • Speaker Outputs — Stereo audio power amplifier supporting 15W+15W RMS loudspeaker outputs, separate stereo balanced line level audio outputs for external amplifier systems.
  • Picture–in Picture.
  • Multiple Outputs — For local monitoring of live output feed.
  • Flexible Control Options — Front panel buttons and jog wheel with LCD, RS–232, Ethernet with built–in Web pages and via API.
  • USB Connectors — For firmware upgrading.
Specyfikacja techniczna
Standardy 4K@60Hz (4:2:0), HDCP, HDMI
Wejścia HDMI, HDBT, DisplayPort, VGA, Component, Composite CV, RGBHV
Wyjścia HDMI, HDBT, DVI, 3G-HD-SDI
Audio Analog, Unbalanced, S/PDIF, Speaker
Sterowanie Ethernet, USB, RS-232
Seria 19" 1U
Skrót właściwości 12–Input 4K60 4:2:0 HQUltra HDBaseT and Legacy Presentation Switcher / Scaler with Ultra–Fast Input Switching, Analog Audio, 3G HD–SDI, Genlock, H.264 Streaming Input.
