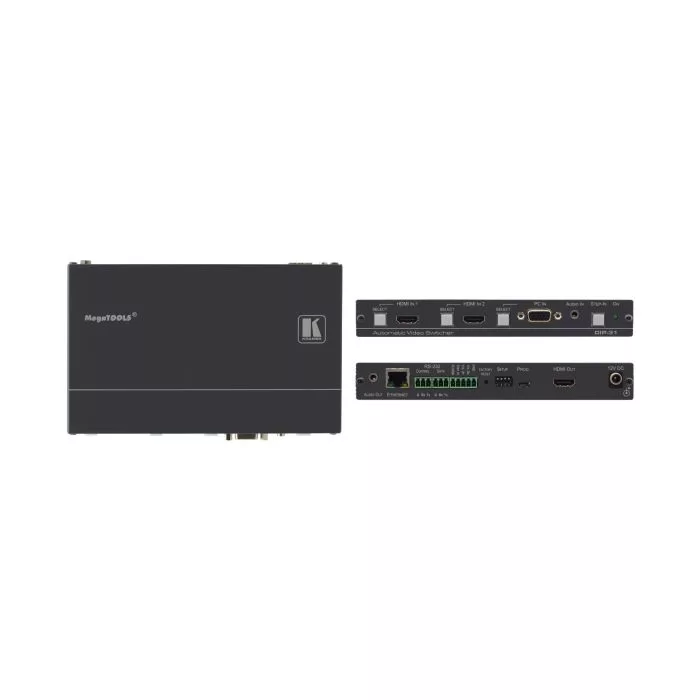

Przełącznik Kramer DIP-31
4K60 4:2:0 HDMI & VGA Auto Switcher.
SKU
DIP-31

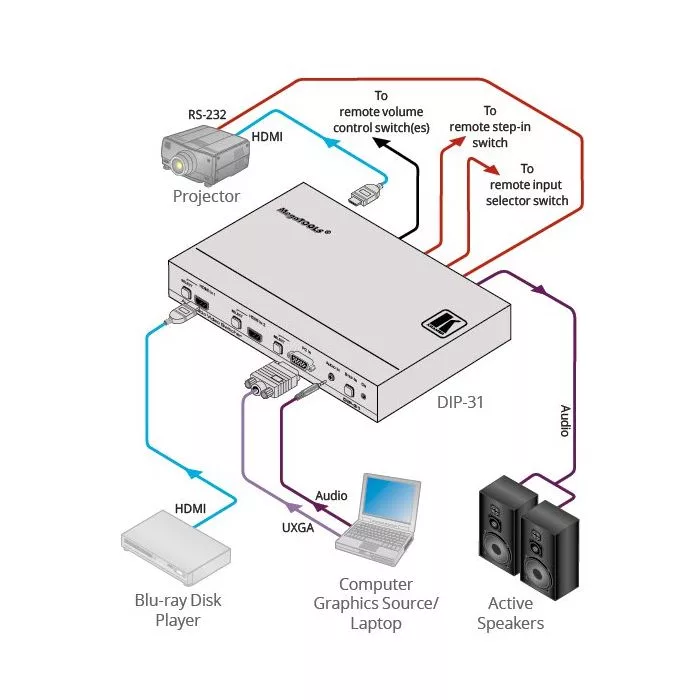

The DIP−31 is a 4K@60Hz (4:2:0) automatic switcher for HDMI, VGA, Ethernet, data and unbalanced audio signals. It supports various modes of input selection and transmit the signal via HDMI cable to a compatible receiver (for example the VS−62H or a display/projector). The device is a Step−in commander when connected to a matrix switcher that supports Step−in over HDMI such as the VS−62H. It also features RS−232 commands to support monitor/projector on/off.
- Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
- Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant — With sources that support HDCP repeater mode.
- HDMI Support — Deep Color, x.v.Color™ and 3D.
- Automatic Live Input Detection — Based on video clock presence.
- Automatic Input Selection — Based on priority selection or last connected input.
- Manual Input Selection.
- Step–in Support.
- Automatic Analog Audio Detection & Embedding.
- Convenient Control — Via Kramer Protocol 3000 and embedded Web pages over a LAN.
- RS–232 Command Support.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
Standardy | 4K@60Hz (4:2:0), VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA, HDCP, HDTV, HDMI |
---|---|
Wejścia | HDMI, VGA |
Wyjścia | HDMI |
Audio | Unbalanced |
Sterowanie | RS-232 |
Seria | Mega Tools |
Skrót właściwości | 4K60 4:2:0 HDMI & VGA Auto Switcher. |
