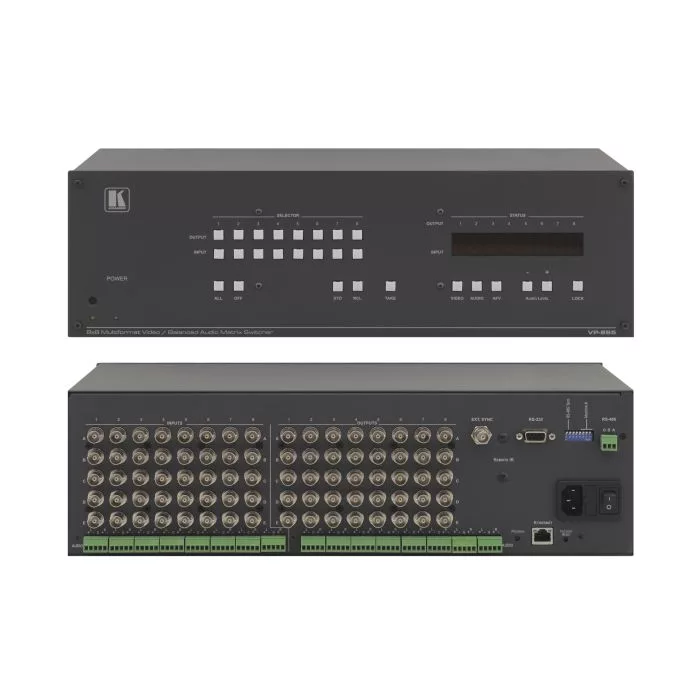

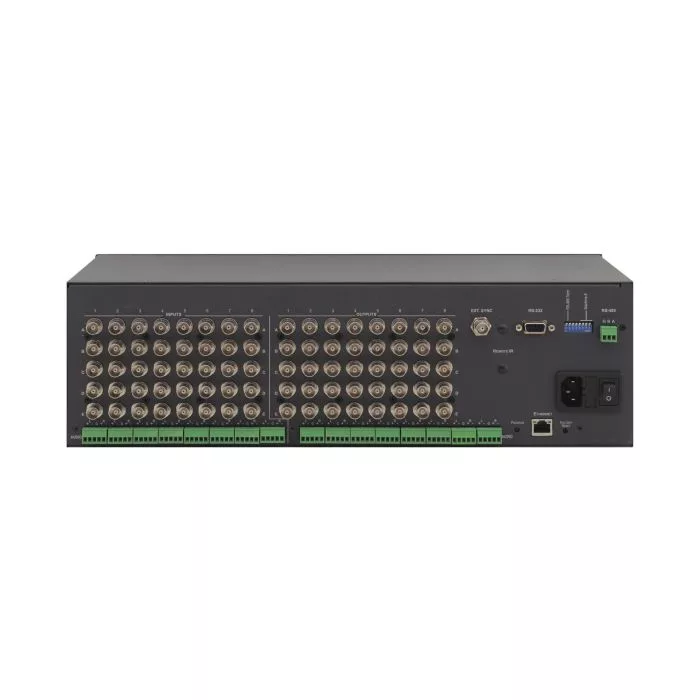

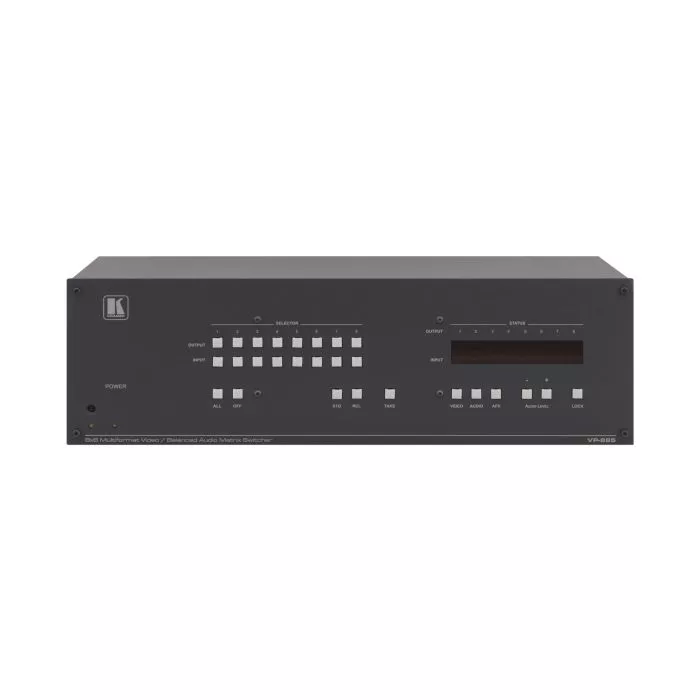

Przełącznik matrycowy Kramer VP-885
Przełącznik 8x8 sygnałów composite, component, s-Video oraz S/PDIF i symetrycznego stereo.
SKU
VP-885
The VP-885 is a high-performance universal matrix switcher for composite video, s-Video (Y/C), component video (Y, Pb, and Pr), balanced stereo audio and S/PDIF digital audio signals. It can route any or all inputs to any or all outputs simultaneously.
- High Bandwidth — 350MHz (–3dB) fully loaded.
- HDTV Compatible.
- Front Panel Control Lockout.
- Take Button — Executes a queue of multiple switches all at once.
- Memory Locations — Stores multiple switches as presets (salvos) to be recalled and executed when needed.
- Analog Audio Breakaway Switching.
- Audio Level Controls — Independent gain control of each input and output channel, to match various source levels.
- Vertical Interval Switching.
- Flexible Control Options — Front panel, RS–232 (K–Router™ Windows®–based software is included), RS–485, Ethernet, IR remote control (included), external IR remote receiver (optional).
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 3U. Rack "ears" included.
| Standardy | Component YUV, Composite CV, s-Video Y/C |
|---|---|
| Wejścia | Component, Composite CV, RGBHV |
| Wyjścia | Composite CV, Component YPbPr, Component YUV, RGBHV |
| Audio | Balanced, S/PDIF |
| Sterowanie | Ethernet, RS-232, RS-485, IR |
| Seria | 19" 3U |
| Skrót właściwości | Przełącznik 8x8 sygnałów composite, component, s-Video oraz S/PDIF i symetrycznego stereo. |
