Przełącznik matrycowy Kramer VP-88K
Przełącznik 8x8 sygnałów RGBHV i symetrycznego stereo.
SKU
VP-88K

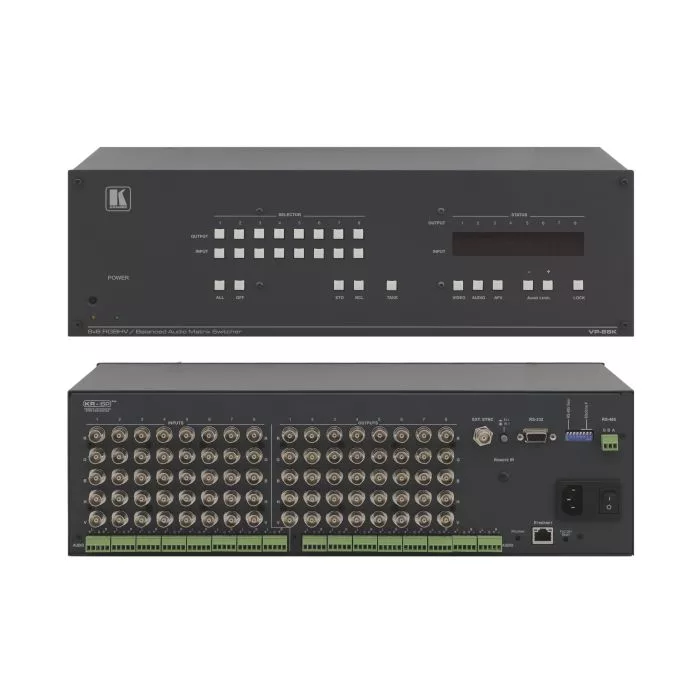

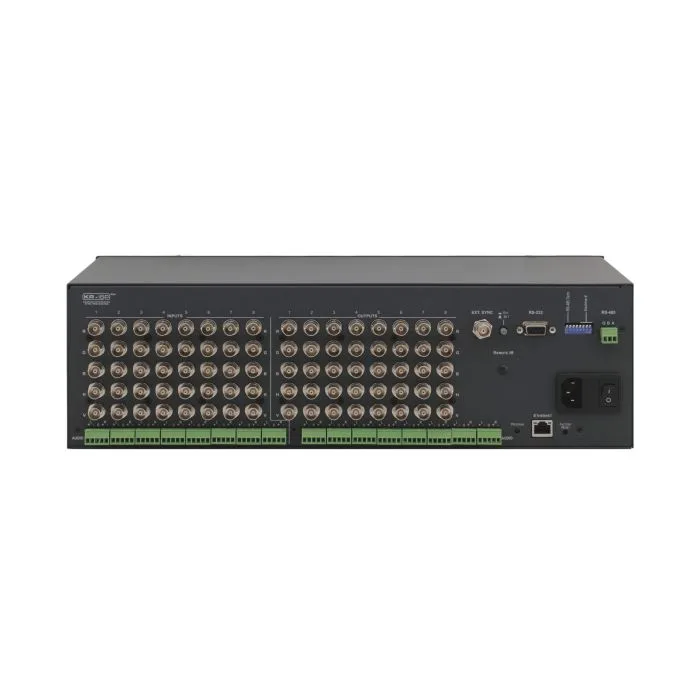

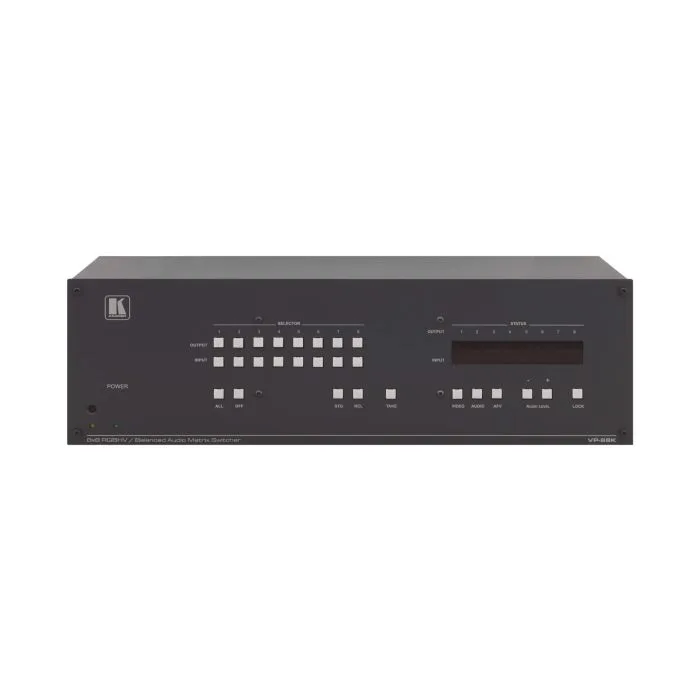

The VP-88K is a high-performance matrix switcher for RGBHV video and balanced stereo audio signals. The unit can route any or all inputs to any or all outputs simultaneously.
- High Bandwidth — 350MHz (–3dB) fully loaded.
- HDTV Compatible.
- Kr–isp® Advanced Sync Processing — Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
- Vertical Interval Switching.
- Audio Gain Level Controls — Independent gain control of each input and output channel, to match various source levels.
- Audio Breakaway Switching.
- Take Button — Executes a queue of multiple switches all at once.
- Memory Locations — Stores multiple switches as presets (salvos) to be recalled and executed when needed.

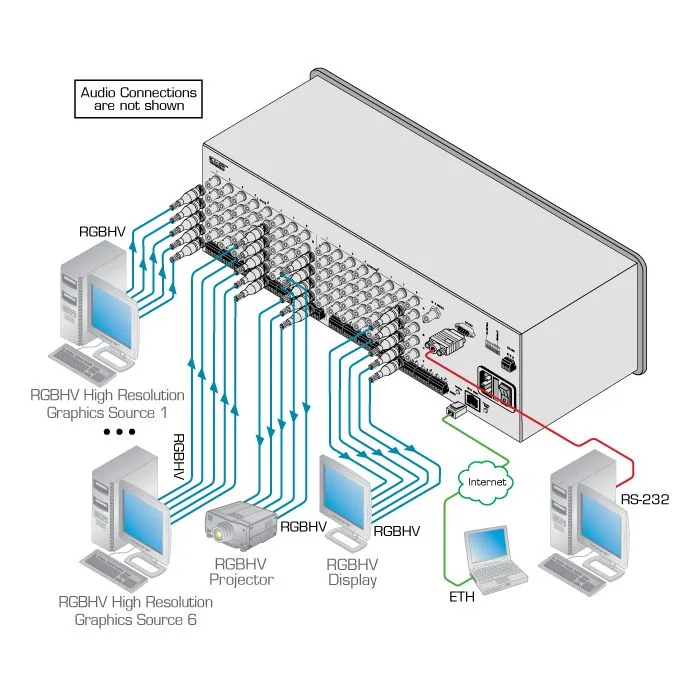

- Flexible Control Options — Front panel, RS–232 (K–Router™ Windows®–based software is included), RS–485, Ethernet, IR remote control (included), external IR remote receiver (optional).
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 3U. Rack "ears" included.
Standardy | HDTV, RGBHV |
---|---|
Wejścia | RGBHV |
Wyjścia | RGBHV |
Audio | Balanced |
Sterowanie | Ethernet, RS-232, RS-485, IR |
Seria | 19" 3U |
Skrót właściwości | Przełącznik 8x8 sygnałów RGBHV i symetrycznego stereo. |
