Przełącznik matrycowy Kramer VP-8x8
Przełącznik 8x8 sygnałów grafiki komputerowej o rozdzielczości przekraczającej UXGA.
SKU
VP-8x8

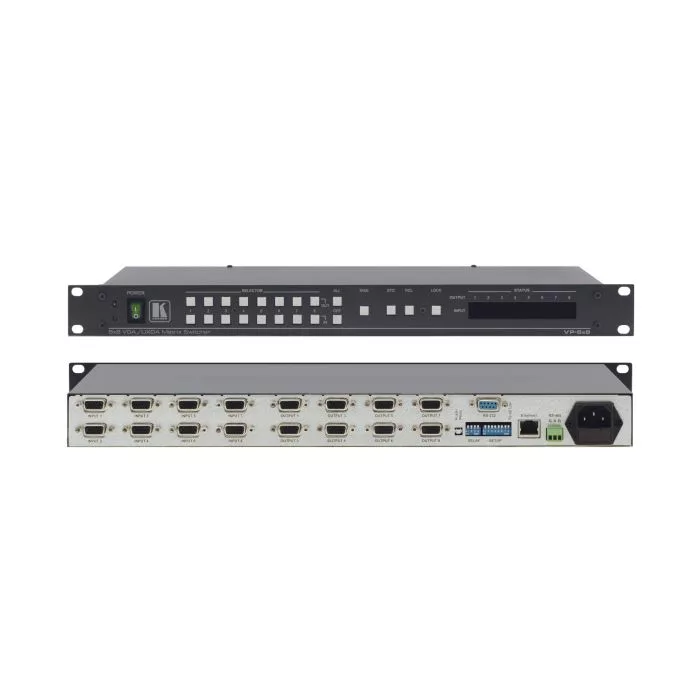

The VP-8x8 is a high performance matrix switcher for computer graphics video signals, with resolutions ranging from VGA through UXGA and higher on HD-15 connectors. It can route any or all inputs to any or all outputs simultaneously.
- High Bandwidth — 400MHz ( — 3dB) fully loaded.
- HDTV Compatible.
- Active Input Indication™ reporting — Eachinput button on the front panel automaticallylights up when the unit detects a video signalon that input. When an input is selected to beswitched, the button changes to a different colorto indicate it is the active input.
- Vertical Interval Switching — Up to a 4 second(user selectable) delay for clean switching.
- Control — Front panel, RS–232 (K–Router™Windows® — based software is included), & RS–485, contact closure, & IR remote (Included).
- Front Panel Control Lockout.
- Take Button — Execute multiple switches all atonce.
- Memory Locations — Store multiple switchesas presets (salvos) to be recalled and executedwhen needed
- Standard 19” Rack Mount Size — 1U.
Standardy | VGA, SVGA, XGA, SXGA, UXGA, HDTV |
---|---|
Wejścia | VGA |
Wyjścia | VGA |
Sterowanie | RS-232, RS-485, IR |
Seria | 19" 1U |
Skrót właściwości | Przełącznik 8x8 sygnałów grafiki komputerowej o rozdzielczości przekraczającej UXGA. |
