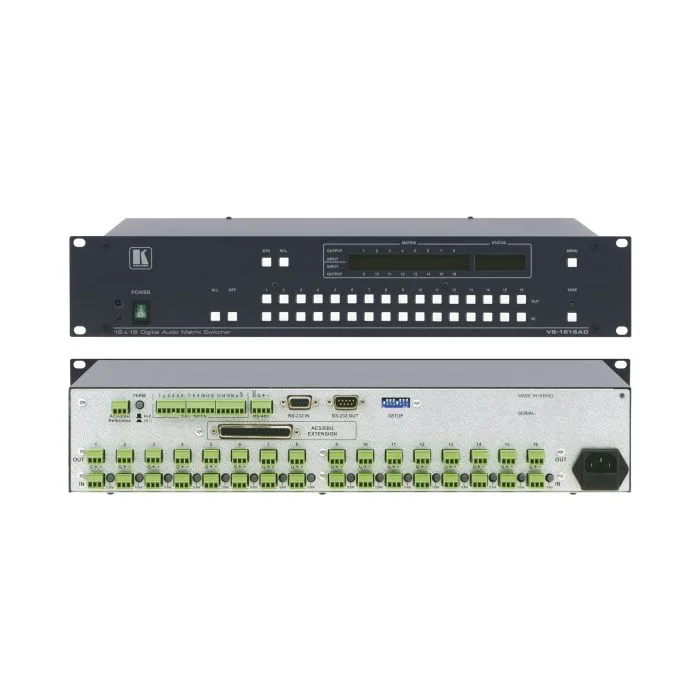

Przełącznik Kramer VS-1616AD
Przełącznik 16x16 cyfrowych sygnałów audio.
Standardy: AES/EBU, IEC 958, S/PDIF, &EIAJ CP340/1201.
SKU
VS-1616AD
! Ograniczona dostępność. Urządzenie zostanie wycofane po wyczerpaniu stanów magazynowych we wszystkich oddziałach Kramer.
The VS-1616AD is a high performance matrix switcher for digital audio (S/PDIF & AES/EBU) signals. It can route any or all inputs to any or all outputs simultaneously on 110 ohm twisted pair cable.
-
Standards-AES/EBU, IEC 958, S/PDIF, &EIAJ CP340/1201.
-
Reclocking & Equalization-Automatic.
-
Control-Front panel, RS-232 (K-Router™Windows® - based software is included), & RS-485, contact closure, & IR Remote (included).
-
Expandable-To 96x96 (on DB-37F).
-
Standard 19” Rack Mount Size-2U.
Zastosowania
Video / audio Broadcast studios for On-Air switching and signal routing
Video / audio production studios, for connecting various sources to acceptors
Non-linear editing suites
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 16 equalized Digital Audio, 110 Ω on detachable terminal, transformer coupled. |
| OUTPUTS: | 16 reclocked Digital Audio, 110 Ω on detachable terminal, transformer coupled; 16 digital audio expansion lines for up to 96/96 in/outs on DB-37F |
| SAMPLING RATES: | 32,44.1,48, 96 kHz sampling frequencies |
| EQUALIZATION: | Automatic up to 200mV eye pattern |
| STANDARDS: | AES/EBU, IEC 958, S/PDIF and EIAJ CP340/1201 |
| CONTROLS: | Manual via front panel touch switches, RS-232 and RS-485 |
| DISPLAY: | Current switcher status and setup on backlight LCD |
| POWER SOURCE: | 115/230 VAC, 50/60 Hz, 23VA |
| DIMENSIONS: | 19-inch (W) x 7-inch (D) x 2U (H), rack mountable |
| WEIGHT: | 3.5 kg. (7.8 lbs.) Approx |
| ACCESSORIES: | Power cord, Windows™ control software, Null modem adapter |
| Skrót właściwości | Przełącznik 16x16 cyfrowych sygnałów audio. Standardy: AES/EBU, IEC 958, S/PDIF, &EIAJ CP340/1201. |
|---|
