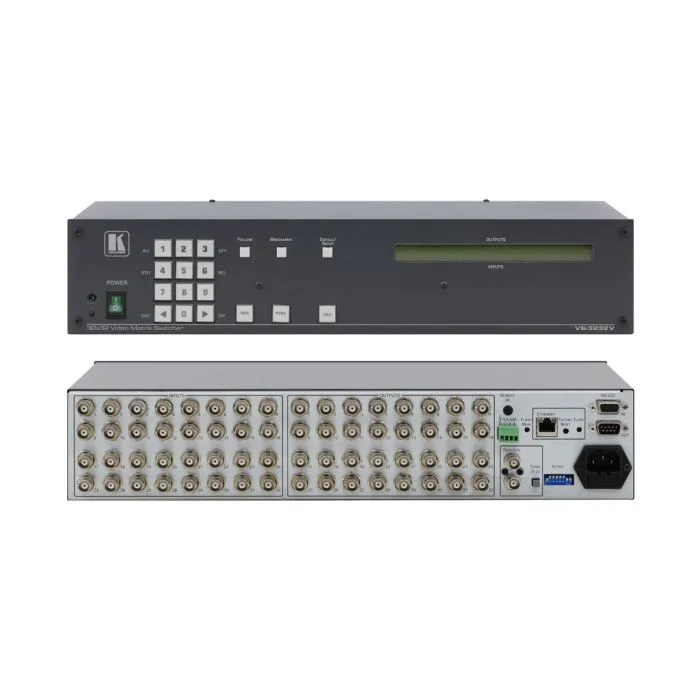

Przełącznik Kramer VS-3232V
Przełącznik 32x32 sygnałów composite video o bardzo szerokim paśmie przenoszenia.
Pasmo przenoszenia - 300 MHz (-3 dB)
SKU
VS-3232V
The VS-3232V is a high performance 32x32 full matrix switcher for composite video signals. An extremely wide bandwidth, multiple set of interfaces and special modes of work make it useful as a part of 32 x 32 Y/C and component video switchers as well as multi-signal video-audio control system.
-
300MHz (- 3dB) fully loaded.
-
Front panel. Remote control via RS-232 (K-Router™ Windows® - based software is included), RS-485, Ethernet and IR remote (included).
-
Easy upgrading via the Ethernet.
-
Store 59 switches as presets to be recalled and executed when needed.
-
Fast accessibility to a preprogrammed default setup.
-
The Kramer 2000 and the Sierra ASCII.
-
100-240V AC.
-
2U. Rack “ears” included.
Zastosowania
Professional display systems requiring video signal routing
Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
Rental/staging applications
Przykładowa aplikacja
Specyfikacja
| inputs: | 32 composite video, 1Vpp / 75Ωon BNC connectors |
| outputs: | 32 composite video, 1Vpp / 75ΩΩon BNC connectors |
| VIDEO BANDWIDTH: | >300MHz, -3dB / >50MHz, 0.1dB |
| ALL HOSTILE CROSSTALK: | <-49dB @5MHz |
| VIDEO S/N: | 70dB unweighted / 78dB @5MHz weighted |
| DIFF. GAIN: | <0.15% |
| DIFF. PHASE: | <0.08 Deg. |
| CONTROL: | 19 pushbutton switches; RS-232, RS-485, IR remote, Ethernet |
| SWITCHING: | 3 modes for Vertical interval switching and Immediate switching |
| DIMENSIONS: | 19-inch (W), 7-inch (D) 2U (H) rack-mountable POWER SOURCE: 230 VAC, 50/60Hz, (115VAC, U.S.A.) 10VA |
| WEIGHT: | 3.5kg (7.8 lbs.) approx |
| ACCESSORIES: | Power cord, Null modem adapter, Windows®-based Kramer control software, Windows®-based Ethernet Configuration Manager and Virtual Serial Port Manager, Infra-red remote control transmitter |
| POWER SOURCE: | 230 VAC, 50/60Hz, (115VAC, U.S.A.) 10VA |
| NON-LINEARITY: | <0.2%. |
| K-FACTOR: | <0.05%. |
| COUPLING: | AC |
| CONTROL: | 19 pushbutton switches; RS-232, RS-485, IR remote, Ethernet. |
| INDICATORS: | Multi-character LCD display on the front panel. |
| SWITCHING: | 3 modes for vertical interval switching and immediate switching. |
| POWER SOURCE: | 230V AC, 50/60Hz, (115V AC, U.S.A.) 10VA. |
| DIMENSIONS: | 19" x 7" x 1U W, D, H, rack mountable. |
| WEIGHT: | 3.5kg (7.8lbs) approx. |
| ACCESSORIES: | Power cord, null-modem adapter, Windows®-based Kramer control software, Windows®-based Ethernet Configuration Manager and Virtual Serial Port Manager, Infrared remote control transmitter. |
| SIZE: | 19' (2U) |
| Skrót właściwości | Przełącznik 32x32 sygnałów composite video o bardzo szerokim paśmie przenoszenia. Pasmo przenoszenia - 300 MHz (-3 dB) |
|---|
