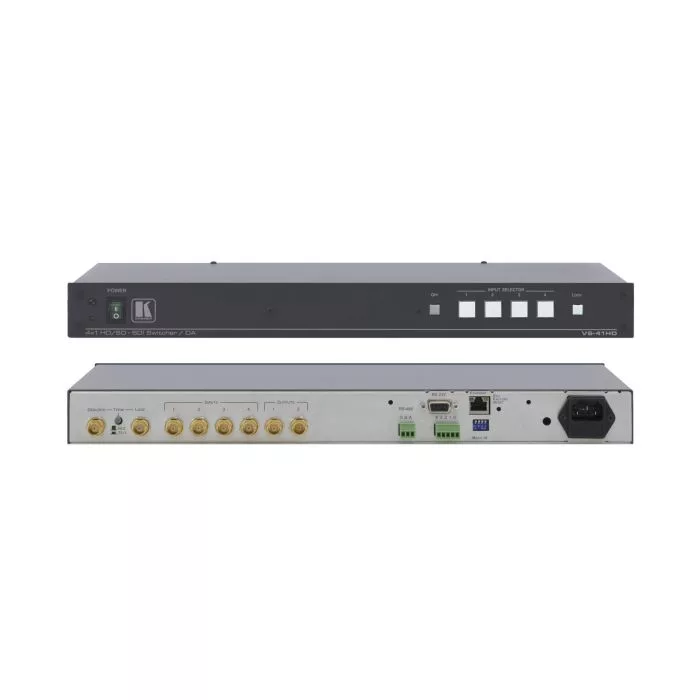

Przełącznik Kramer VS-41HD
4x1:2 HD–SDI & SDI Digital Video Switcher
SKU
VS-41HD
The VS-41HD is a high performance switcher for SDI (SMPTE 259M and SMPTE 344M) and HD-SDI (SMPTE 292M) digital video signals that enables the distribution of the four inputs to two identical outputs.
- Maximum Data Rate— 1.485 Gbps.
- HDTV Compatible.
- Multi–Standard Operation — SDI (SMPTE 259M/344M) & HD–SDI (SMPTE 292M).
- Reclocking & Equalization— Automatic.
- Flexible Control Options— Front Panel, RS–232 (K–Router™ Windows®–based software is included), RS–485, Ethernet, contract closure & IR Remote (included).
- Active Input Indication™ Reporting— Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD–SDI) input signal.
- Input and output signals on BNC connectors
- Looping Analog Sync Input.
- Selectable Sync Signal Termination.
- Front Panel Control Lockout.
- Vertical Interval Switching — SMPTE RP–168.
- Output Disconnect.
- Worldwide Power — 100–240VAC.
- Standard 19" Rack Mount Size— 1U. Rack “ears” included.
Standardy | HDTV, HD-SDI, SDI |
---|---|
Wejścia | SDI |
Wyjścia | SDI |
Audio | Digital |
Sterowanie | RS-232, RS-485, IR |
Seria | 19" 1U |
Skrót właściwości | 4x1:2 HD–SDI & SDI Digital Video Switcher |
