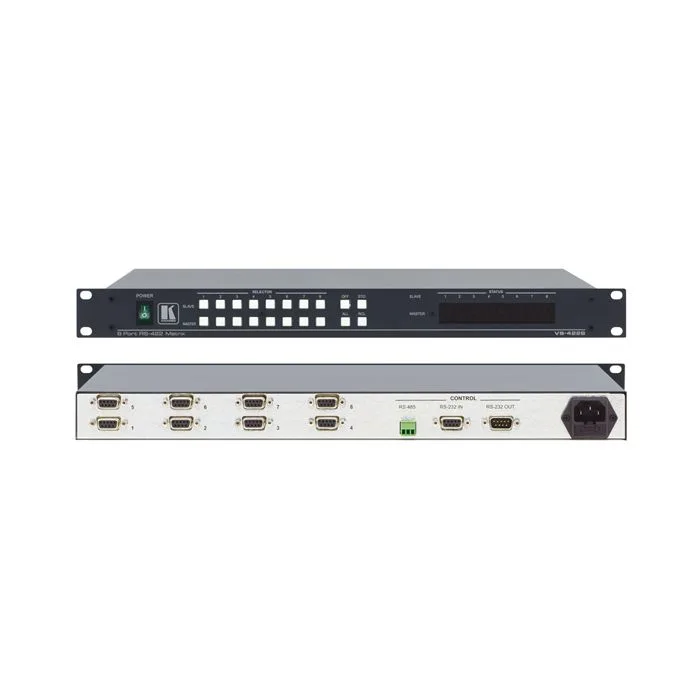

Przełącznik Kramer VS-4228
Przełącznik dwukierunkowy sygnałów RS-422.
Zgodność ze standardami - TIA/EIA−422−B i SMPTE 207M.
SKU
VS-4228
The VS-4228 is a high performance bi-directional matrix switcher for RS-422 control signals. It can connect multiple ports to create from one to four bi-directional communications groups.
-
Control-Front panel, RS-232 (K-Router™Windows® - based software is included), & RS-485.
-
Memory Locations-Store multiple switchesas presets to be recalled and executed whenneeded.
-
Front Panel Control Lockout.
-
Standard 19” Rack Mount Size-1U.
Zastosowania
Remote control of video and audio production studios.
Live broadcast remote control.
CCTV and other remote control applications.
Przykładowa aplikacja
Specyfikacja
INPUT/OUTPUT: | 8 in/out ports on 9−pin D−sub (F) connectors. |
CONTROL: | Front panel buttons, RS−485 and RS−232 serial interface (in and out). |
INDICATORS: | 8−character display on the front panel. |
STANDARDS COMPLIANCE: | TIA/EIA−422−B and SMPTE 207M. |
OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
HUMIDITY: | 10% to 90%, RHL non−condensing. |
DIMENSIONS: | 19” x 7” x 1U (W, D, H) rack−mountable. |
POWER CONSUMPTION: | 230V AC, 50/60 Hz, (115V AC, U.S.A.) 10VA. |
WEIGHT: | 2.2 kg (4.88 lbs) approx. |
ACCESSORIES: | Power cord, Windows® Control Software. |
Skrót właściwości | Przełącznik dwukierunkowy sygnałów RS-422. Zgodność ze standardami - TIA/EIA−422−B i SMPTE 207M. |
---|
