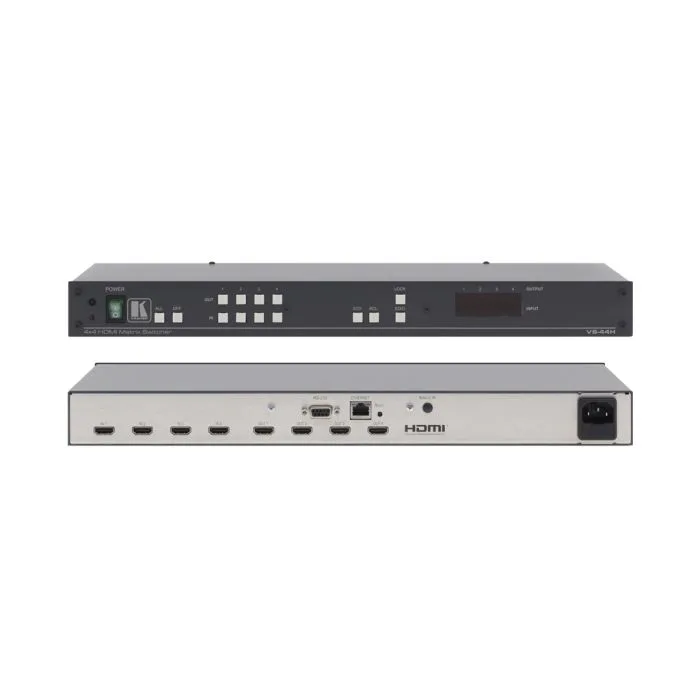

Przełącznik Kramer VS-44H
Przełącznik 4x4 sygnałów HDMI.
Max. Data Rate: 1.65Gbps
SKU
VS-44H
The VS−44H is a high−performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
-
Max Data Rate-1.65Gbps.
-
Kramer re-Klocking™ & Equalization Technology-Rebuilds the digital signal integrity to travel longer distances.
-
HDCP Compliant.
-
Fast Switching Technology-Reduces switching delay between HDMI sources.
-
HDTV Compatible.
-
Enhanced EDID (Extended Display Identification Data)-Captures an EDID setting from a device connected to the output and stores it in a non-volatile memory. The user can recall this setting or a factory default EDID.
-
Flexible Control Options-Front panel, IR Remote, RS-232 (K-Router™ Windows®-based software is included) & Ethernet (Windows®-based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
-
Output Disconnect-Each output.
-
Output Disconnect-Each output.
-
Memory Locations-Store multiple switches as presets to be recalled and executed when needed.
-
Worldwide Power Supply-100-240V AC.
-
Size-19” (1U)
Zastosowania
Conference room presentations and advertising applications.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 4 HDMI connectors |
OUTPUTS: | 4 HDMI connectors |
BANDWIDTH: | Supports up to 1.65Gbps bandwidth per graphic channel |
COMPLIANCE WITH HDMI STANDARD: | Supports HDMI 1.1 and HDCP |
POWER SOURCE: | 100-240V AC; 50/60Hz, 28VA |
INDICATORS: | 4−character display on the front panel. |
MAX RESOLUTION: | Up to UXGA; 1080p, 1920 x 1200 |
CONTROLS: | Front panel buttons, infrared remote control transmitter, RS-232, Ethernet |
DIMENSIONS: | 19" x 7" x 1U W, D, H |
WEIGHT: | 2.5kg (5.5lbs) approx. |
ACCESSORIES: | Power cord, IR transmitter |
Standard 19” Rack Mount Size: | 1U. Rack “ears” included. |
Skrót właściwości | Przełącznik 4x4 sygnałów HDMI. Max. Data Rate: 1.65Gbps |
---|
