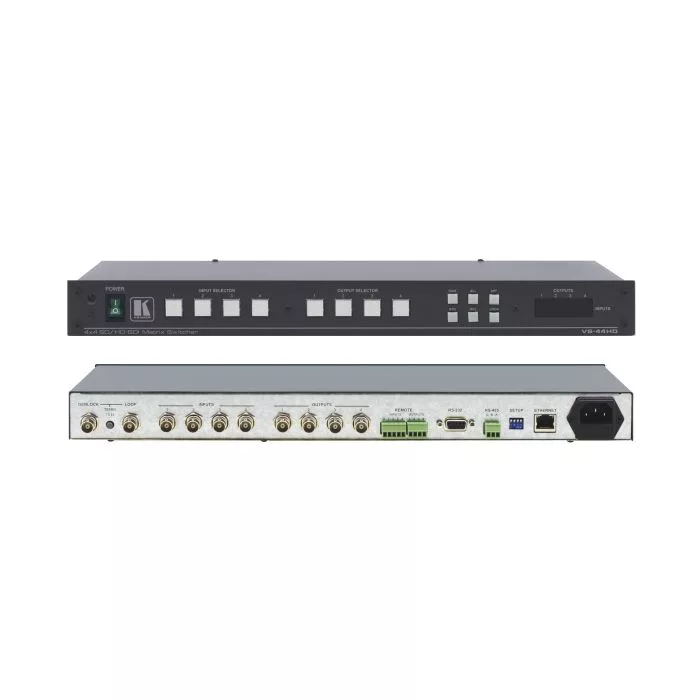

Przełącznik matrycowy Kramer VS-44HD
Przełącznik 4x4 sygnałów HD-SDI i SDI.
SKU
VS-44HD
The VS-44HD is a high performance matrix switcher for HD-SDI and SDI digital video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
- Max Data Rate — Up to 1.485Gbps.
- HDTV Compatible.
- Multi–Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M) & dual link (SMPTE 372M).
- Reclocking & Equalization — Automatic.
- Switching Synchronization — Synchronize either to external reference or incoming video.
- Active Input Type™ Reporting — Each inputbutton on the front panel automatically lights up when the unit detects a video signal on that input. Red indicates a standard definition (SDI) inputsignal and blue indicates a high definition (HD–SDI) input signal.
- Memory Locations — Store multiple switches aspresets (salvos) to be recalled and executed when needed.
- Take Button — Execute multiple switches all at once.
- Control — Front Panel, RS–232 (K–Router™Windows®–based software is included), RS–485, Ethernet, contact closure & IR Remote(included).
- Looping Analog Sync Input.
- Selectable Sync Signal Termination.
- Front Panel Control Lockout.
- Standard 19˝ Rack Mount Size — 1U.
- Worldwide Power Supply — 90–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack "ears" included.
Standardy | HDTV, HD-SDI, SDI |
---|---|
Wejścia | SDI |
Wyjścia | SDI |
Sterowanie | RS-232, RS-485, IR |
Seria | 19" 1U |
Skrót właściwości | Przełącznik 4x4 sygnałów HD-SDI i SDI. |
