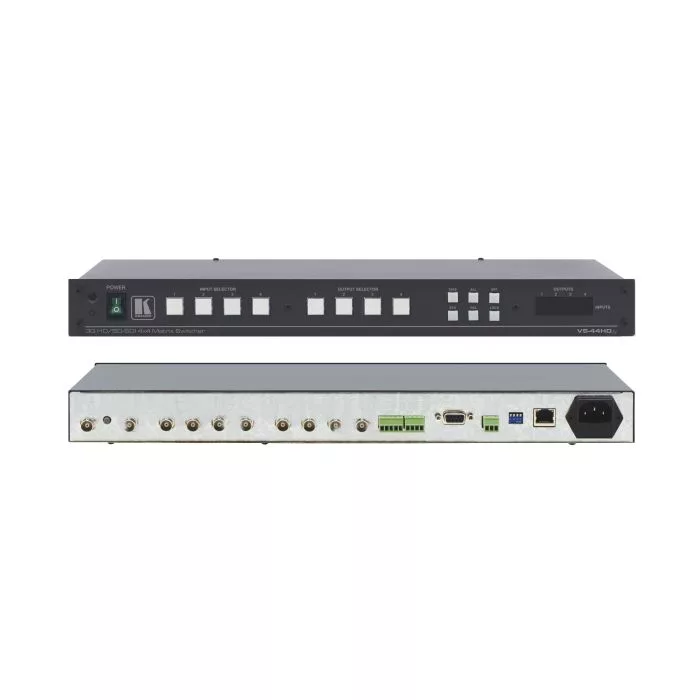

Przełącznik matrycowy Kramer VS-44HDxl

Przełącznik 4x4 sygnałów HD-SDI i 3G HD-SDI.
SKU
VS-44HDxl

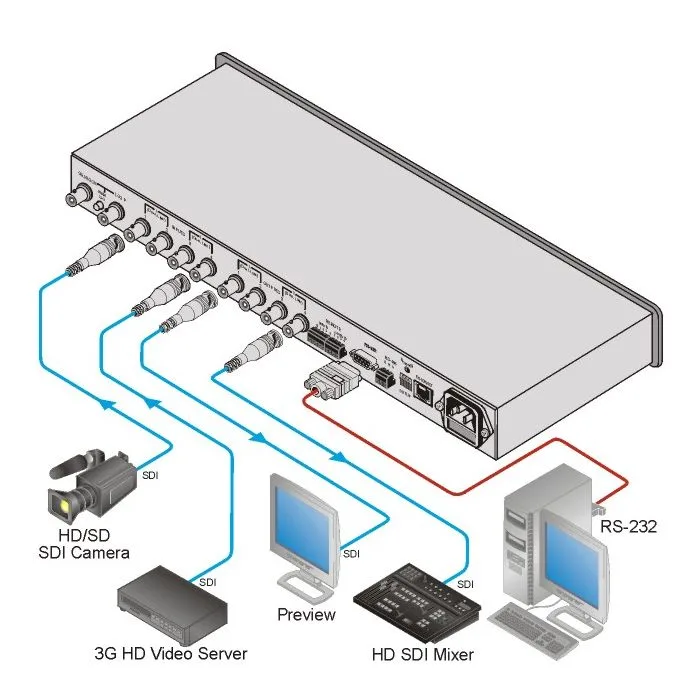

The VS-44HDxl is a high-performance matrix switcher for 3G HD-SDI and HD-SDI dual link video signals. The unit can switch any or all inputs to any or all outputs. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources.

  • Max Data Rate — 3Gbps.Multi–Standard Operation — SD/ HD/ 3G HD–SDI or Dual Link HD–SDI. Kramer re–Klocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.Switching Synchronization — Synchronizes either to external reference or incoming video.Analog Sync Type — Bi–level, tri–level.Active Input Type™ Reporting — Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high–definition (HD–SDI) input signal.Multiple Memory Locations — Stores multiple switches as presets (salvos) to be recalled and executed when needed.Take Button — Executes multiple switches all at once.Flexible Control Options — Front Panel, RS–232 (K–Router™ Windows®–based software is included), RS–485, Ethernet, contact closure & IR Remote (included).Looping Analog Sync Input.Selectable Sync Signal Termination.Vertical Interval Switching — SMPTE RP–168.Front Panel Control Lockout.Worldwide Power Supply — 100–240V AC.Standard 19 inch Rack Mount Size — 1U. Rack “ears” included.
  • HDTV Compatible.
  • INPUTS: — 4 SMPTE–259M/292M/424M serial video, 75Ω on a BNC connector 1 GENLOCK 75Ω / Hi–Z on a BNC connector, hi–level or tri–level sync
  • OUTPUTS: — 4 equalized and reclocked SMPTE–259M, 292M outputs 75Ω on BNC connectors 1 Looped GENLOCK 75Ω/Hi–Z on a BNC connector
  • MAX. OUTPUT LEVEL: — 800mVpp/75Ω
  • DATA RATE: — Up to 2.97Gbps
  • CONTROLS: — Front–panel, RS–232; RS–485, ETHERNET, infra–red remote, dry contact, and panel lock
  • POWER SOURCE: — Universal, 100–240VAC, 50/60Hz 22VA
  • WEIGHT: — 2.6kg (5.7lbs) approx.
  • ACCESSORIES: — Power cord, null–modem adapter
  • Looping Sync Input
  • Vertical Interval Switching — SMPTE RP–168.
  • Front Panel Control Lockout.
  • DIMENSIONS: — 19 inch (W), 7 inch (D), 1U (H) rack mountable
  • Worldwide Power Supply — 100–240V AC.
  • Standard 19” Rack Mount Size — 1U. Rack “ears” included.
Specyfikacja techniczna
Standardy HDTV, 3G HD-SDI, HD-SDI, SDI
Wejścia SDI
Wyjścia SDI
Sterowanie Ethernet, RS-232, RS-485, IR
Seria 19" 1U
Skrót właściwości Przełącznik 4x4 sygnałów HD-SDI i 3G HD-SDI.
