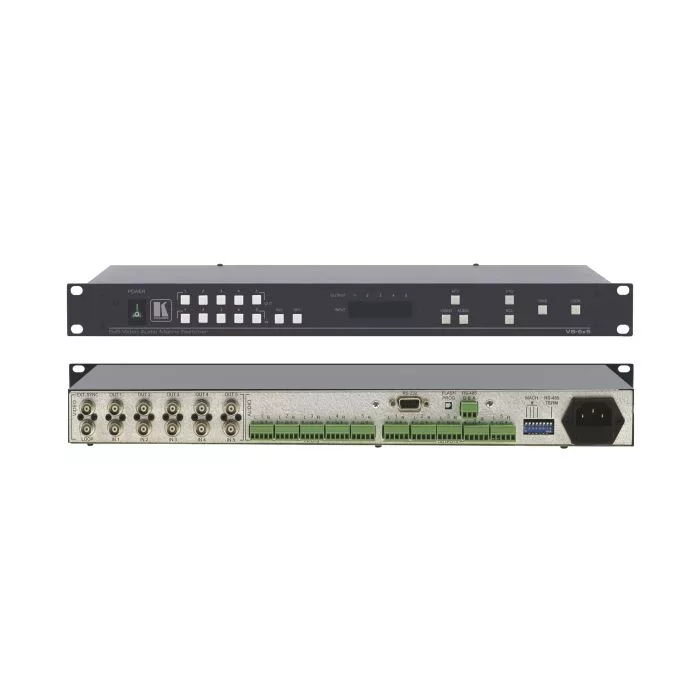

Przełącznik matrycowy Kramer VS-5x5
Przełącznik matrycowy 5x5 sygnałów composite video i symetrycznego audio.
SKU
VS-5x5
The VS-5x5 is a high performance matrix switcher for composite video and unbalanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
- Bandwidth — 70MHz ( — 3dB) fully loaded.
- Control — Front panel, RS–232 (includedK–Router™ Windows® — based software isincluded), & RS–485, IR Remote (included).
- Front Panel Control Lockout.
- Take Button — Execute multiple switches all atonce.
- Memory Locations — Store multiple switchesas presets to be recalled and executed whenneeded.
- Audio Gain Level Controls — Input and outputvia RS–232.
- Audio Breakaway Switching.
- Vertical Interval Switching.
- Switching Synchronization — Synchronizeeither to external reference or the incomingvideo.
- Looping Sync Input.
- Worldwide Power Supply — 100–240V AC.
- Standard 19" Rack Mount Size — 1U.
| Standardy | Composite CV |
|---|---|
| Wejścia | Composite CV |
| Wyjścia | Composite CV |
| Audio | Unbalanced |
| Sterowanie | RS-232 |
| Seria | 19" 1U |
| Skrót właściwości | Przełącznik matrycowy 5x5 sygnałów composite video i symetrycznego audio. |
