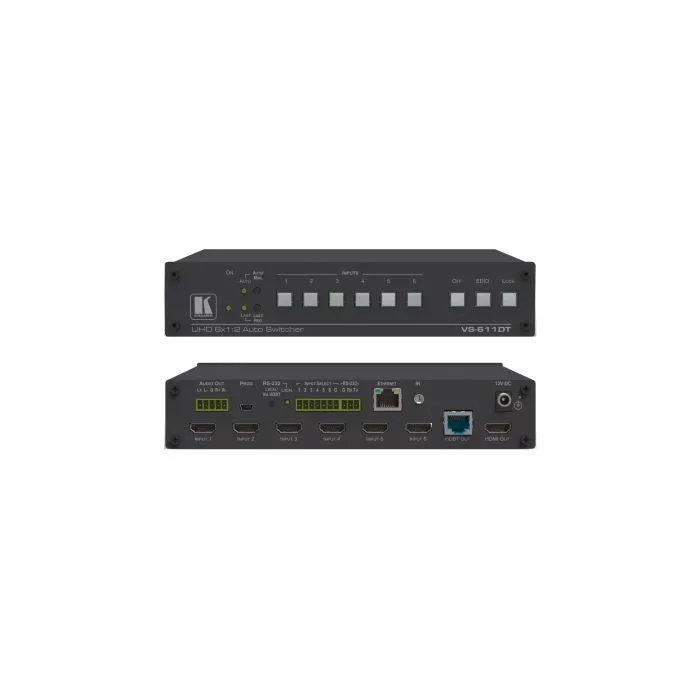

Przełącznik Kramer VS-611DT

VS−611DT is a high−performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher−priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2:0) outputs.

• Max. Data Rate — 8.91Gbps (2.97Gbps per graphic channel).
• Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
• HDTV Compatible.
• HDCP Compliant — Works with sources that support HDCP repeater mode.
• HDMI Support — Deep Color, Ethernet, ARC, 7.1 PCM.
• Step–in Master Support.
• Automatic Input Detection & Selection.
• Auto–Power Off — When no HDMI input for 30 seconds (selectable).
• HDCP On/Off Switching.
• EDID Configuration Options.
• Selectable Switching — Manual or fast auto–switching according to last connected or preset priority.
• Full HDBaseT Certification — Including bidirectional RS–232, Ethernet, IR and POE.
• HDBaseT Extended Reach — Up to 100m@ 4K60 (4:2:0).
• POE Source for HDBaseT Receivers.
• Contact Closure — For remote manual switching override.
• HDMI ARC De–Embedding — From output to balanced stereo audio line, uncompressed.
• Firmware Upgrade — Over mini–USB, RS–232 or RJ–45 Web page.
• Varied Control Options — Front panel keyboard, HDBaseT Ethernet, RS–232 local and over HDBaseT, IR.
• Built–in Web Server.
• Software Support — For Protocol 3000, K–Router Plus, EDID Designer, K–Upload.
