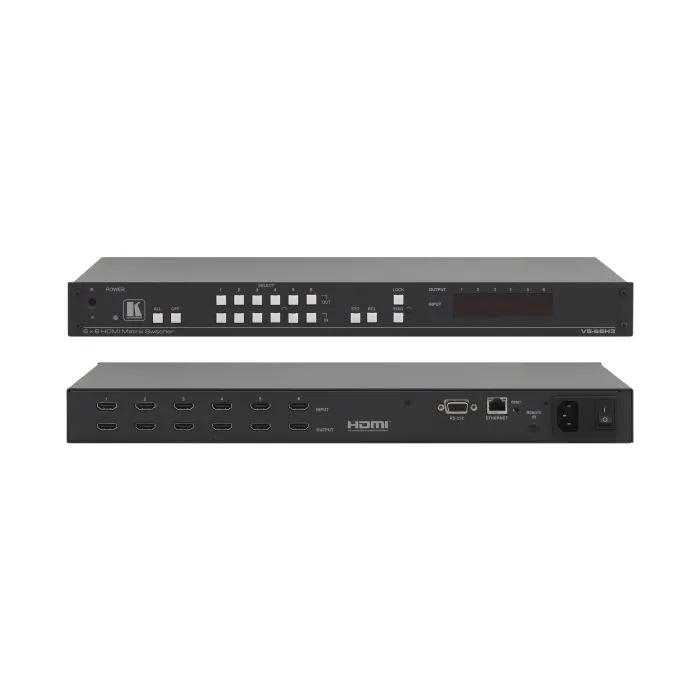

Przełącznik Kramer VS-66H3
Przełącznik 6x6 sygnałów HDMI.
Max. Data Rate: 2.25Gbps na kanał.
SKU
VS-66H3
The VS−66H3 is a high−performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
-
Max. Data Rate-2.25Gbps per graphic channel.
-
HDCP Compatible.
-
HDTV Compatible.
-
HDMI Support-3D, Deep Color, x.v.Color™.
-
3D Pass-Through.
-
Kramer Equalization & re‑Klocking™ Technology-Rebuilds the digital signal to travel longer distances.
-
I-EDIDPro™ Kramer Intelligent EDID Processing™-Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
-
Output Disconnect-For each output.
-
Front Panel Control Lockout.
-
Memory Locations-Stores multiple switches as presets to be recalled and executed when needed.
-
Flexible Control Options-Front panel, IR remote, RS−232 (K−Router™ Windows®−based software is included), Ethernet (Windows®−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
-
Worldwide Power Supply-100−240V AC.
-
Standard 19” Rack Mount Size-1U. Rack "ears" included.
Zastosowania
Conference room presentations and advertising applications.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 6 HDMI onnectors. |
| OUTPUTS: | 6 HDMI connectors. |
| BANDWIDTH: | Supports up to 2.25Gbps bandwidth per graphic channel. |
| COMPLIANCE WITH HDMI STANDARD: | Supports HDMI and HDCP. |
| RESOLUTION: | Up to UXGA; 1080p. |
| POWER CONSUMPTION: | 100−240V AC, 50/60Hz, 33VA. |
| CONTROLS: | Front panel buttons, infrared remote control transmitter, RS−232, Ethernet. |
| DIMENSIONS: | 19” x 10.9” x 1U (W, D, H), rack mountable. |
| WEIGHT: | 2.1kg (4.6lbs) approx. |
| ACCESSORIES: | Power cord, IR transmitter, rack ”ears”. |
| OPTIONS: | Kramer HDMI cables, external remote IR receiver cable. |
| Skrót właściwości | Przełącznik 6x6 sygnałów HDMI. Max. Data Rate: 2.25Gbps na kanał. |
|---|
