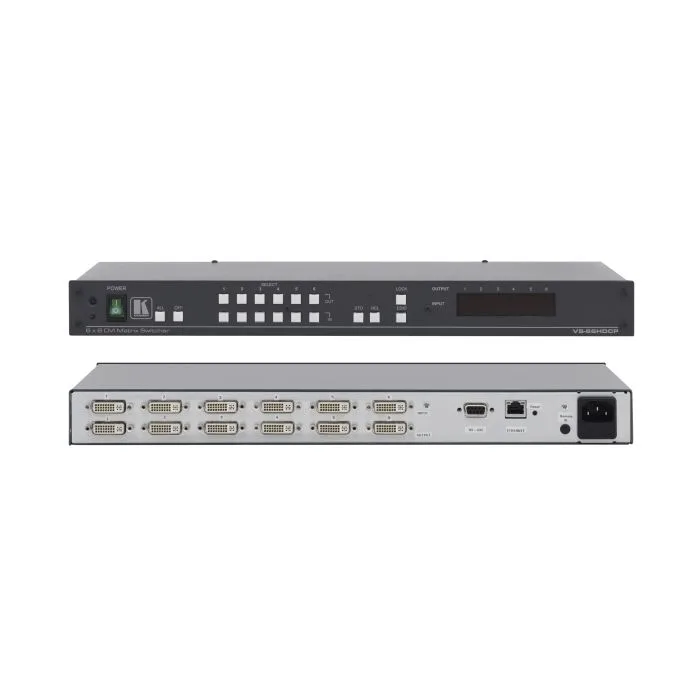

Przełącznik Kramer VS-66HDCP
Przełącznik 6x6 sygnałów DVI.
Max. Data Rate: 4.95Gbps (1.65Gbps na kanał).
SKU
VS-66HDCP
! Ograniczona dostępność. Urządzenie zostanie wycofane po wyczerpaniu stanów magazynowych we wszystkich oddziałach Kramer.
The VS−66HDCP is a high−performance matrix switcher for DVI signals. The unit reclocks and equalizes the signal and can route any or all inputs to any or all outputs simultaneously.
-
Max. Data Rate-4.95Gbps (1.65Gbps per graphic channel).
-
HDTV Compatible.
-
HDCP Compliant.
-
Kramer Equalization & re-Klocking™ Technology-Rebuilds the digital signal integrity to travel longer distances.
-
Smart EDID (Extended Display Identification Data) Recall- The unit can store and recall a default EDID setting in non-volatile memory from the output, allowing convenient and reliable connection to the source.
-
Flexible Control Options-Front panel, IR Remote, RS−232 (K−Router™ Windows®−based software is included), Ethernet (Windows®−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
-
Output Disconnect-Each output.
-
Front Panel Lockout.
-
Memory Locations-Stores multiple switches as presets to be recalled and executed when needed.
-
Worldwide Power Supply-100−240V AC.
-
Standard 19-inch Rack Mount Size-1U. Rack “ears” included.
Zastosowania
Conference room presentations.
Advertising.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
inputs: | 6 DVI connectors |
outputS: | 6 DVI connectors |
input/output: | DVI-D signals (on DVI-I connectors) |
ACCESSORIES: | Power cord, IR transmitter |
OPTIONS: | Kramer cables |
BANDWIDTH: | Supports up to 1.65Gbps bandwidth per graphic channel. |
COMPLIANCE WITH STANDARDS: | Supports DVI and HDCP. |
MAX RESOLUTION: | Up to UXGA, 1080p, 1920x1200. |
CONTROLS: | Front panel buttons, infra-red remote control transmitter, RS-232, Ethernet. |
INDICATORS: | 6−character display on the front panel. |
POWER SOURCE: | 100-240V AC; 50/60Hz, 32VA. |
DIMENSIONS: | 19" x 7" x 1U W, D, H, rack mountable. |
WEIGHT: | 2.5kg (5.5lbs) approx. |
ACCESSORIES: | Power cord, IR transmitter. |
OPTIONS: | Kramer cables. |
Skrót właściwości | Przełącznik 6x6 sygnałów DVI. Max. Data Rate: 4.95Gbps (1.65Gbps na kanał). |
---|
