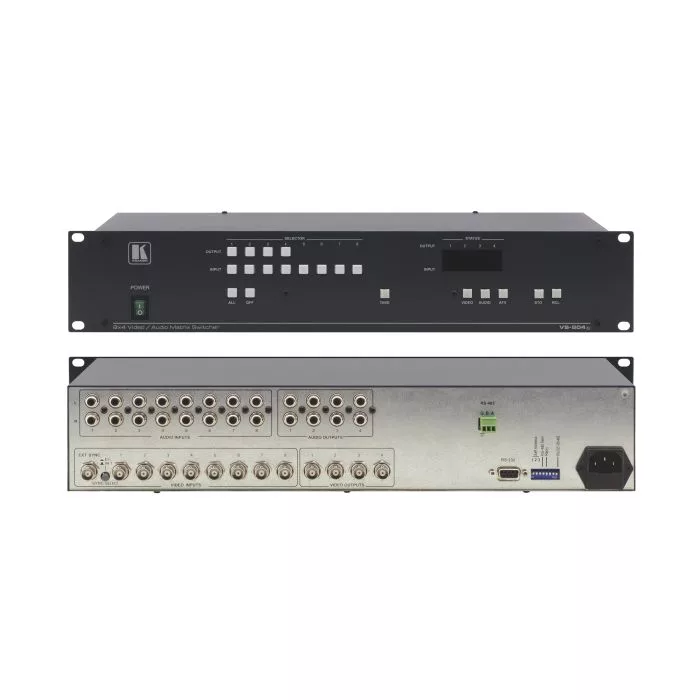

Przełącznik matrycowy Kramer VS-804xl
Przełącznik 8x4 sygnałów composite video i niesymetrycznego audio.
SKU
VS-804xl
The VS-804xl and VS-808xl are high performance matrix switchers for composite video and unbalanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
- Bandwidth — 200MHz ( — 3dB) fully loaded.
- Control — Front panel, RS–232 (K–Router™Windows® — Based Software is included), & RS–485.
- Take Button — Execute multiple switches all atonce.
- Memory Locations — Store multiple switchesas presets (salvos) to be recalled and executedwhen needed.
- Audio Breakaway Switching.
- Vertical Interval Switching.
- Switching Synchronization — Synchronizeeither to external reference or the incomingvideo.
- Selectable Sync Signal Termination.
- Standard 19” Rack Mount Size — 2U.
Standardy | Composite CV |
---|---|
Wejścia | Composite CV |
Wyjścia | Composite CV |
Audio | Unbalanced |
Sterowanie | RS-232, RS-485 |
Seria | 19" 2U |
Skrót właściwości | Przełącznik 8x4 sygnałów composite video i niesymetrycznego audio. |
