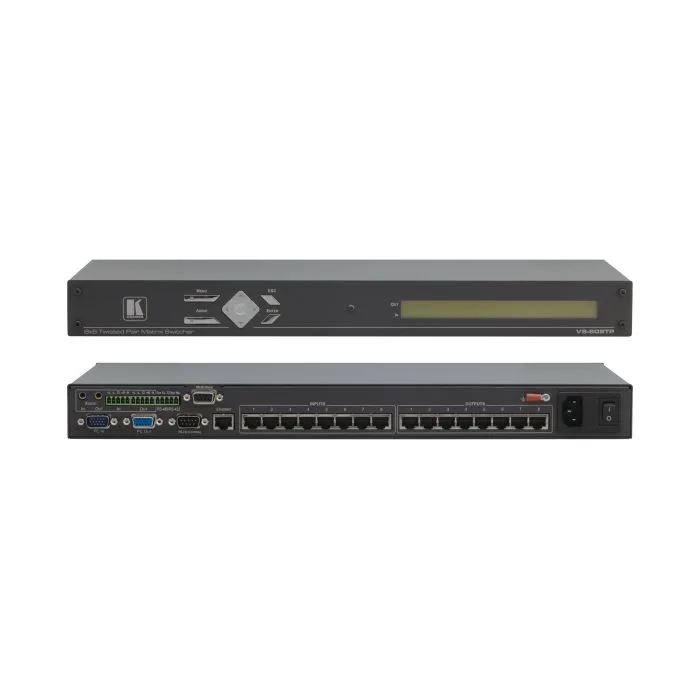

Przełącznik Kramer VS-808TP
Przełącznik 8x8 sygnałów analogowych przesyłanych skrętką.
Maksymalna rozdzielczość - 1920x1200
SKU
VS-808TP
The VS−808TP is a high−performance matrix switcher for analog twisted pair signals. The unit routes any or all remote inputs to any or all remote outputs simultaneously.
-
Device Compatibility-Designed for use with the auto−adjusting TP−133/TP−134 transmitter/receiver pair.
-
Local Input/Output-Includes an additional switchable VGA, stereo audio and RS−232 input and output for use in direct connections or when connecting to the compatible TP−133/TP−134.
-
Follow or Breakaway Audio Switching.
-
RS-232 Baud Rate-For control and data signals, up to 115.2kbps.
-
Memory Presets-Includes 15 user−programmable presets for quick−change configurations.
-
Range-Up to 200m (656ft).
-
Cable- For optimum range and performance, use Kramer's BC DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
-
Flexible Control Options-Front panel buttons, RS−232, RS−485 and Ethernet.
-
Control via Kramer 2000 Protocol.
-
Indicators-Two−line LCD display for separate route indication of video, audio or RS−232.
-
Worldwide Power Supply-100−240V AC.
-
Standard 19” Rack Mount Size-1U. Rack "ears" included.
Zastosowania
Presentation and multimedia applications.
Long-range graphics distribution and control for schools, hospitals, security, and stores.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 8 remote twisted pairs on RJ−45 connectors, 1 RGBHV WUXGA on a 15−pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 balanced stereo audio on a 5−pin terminal block. |
| OUTPUTS: | 8 remote twisted pairs on RJ−45 connectors, 1 RGBHV WUXGA on a 15−pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 balanced stereo audio on a 5−pin terminal block. |
| PORTS: | 1 RS−232 (data) on a 9−pin D−sub connector, 1 RS−485/RS−422 on a 5−pin terminal block . |
| CONTROL: | 1 RS−232 (control) input on a 9−pin D−sub connector, 1 Ethernet LAN on an RJ−45 connector. |
| RESOLUTION: | Up to 1920x1200 @60Hz (WUXGA) depending on the transmitter/receiver. |
| VIDEO CONTROL: | EQ/GAIN adjustment is done automatically at every connection change or can be forced manually via the front panel. |
| AUDIO GAIN: | 0−15 where 0=mute, 01=–25dB and 15=6dB. |
| MAXIMUM CABLE LENGTH: | 300m (984ft). |
| BAUD RATE (RS-232): | 9600, 19200, 38400, 115200. |
| POWER CONSUMPTION: | 100−240VAC, 50/60Hz, 23VA. |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| DIMENSIONS: | 19" x 9.4" x 1U (W, D, H). |
| WEIGHT: | 3kg (6.6lbs) approx. |
| ACCESSORIES: | Power cord, rack “ears”. |
| Skrót właściwości | Przełącznik 8x8 sygnałów analogowych przesyłanych skrętką. Maksymalna rozdzielczość - 1920x1200 |
|---|
