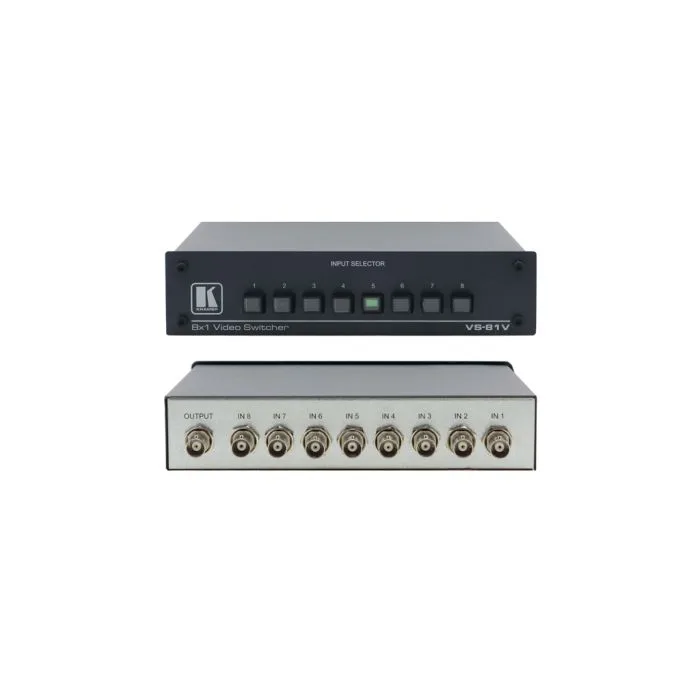

Przełącznik Kramer VS-81V
Przełącznik 8x1 sygnału composite video.
Pasmo przenoszenia - 400 MHz (-3 dB)
SKU
VS-81V
The VS-81V is a high performance switcher for composite video signals. It switches any one of eight signals to a single output.
- High Bandwidth - 400MHz (- 3dB).
- Mechanical (Passive) Switching - No powerrequired.
- Desktop Size - Compact size. Two units can berack mounted side-by-side in a 1U rack spacewith the optional RK-81 adapter.
Zastosowania
Any professional system requiring simple 8x1 video switching.
Security, CCTV, and home theater systems.
Any application where a passive “hard-wired” signal path is preferred.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 8 Video, 1Vpp/75 Ω nom. on BNCs. |
| OUTPUTS: | 1 video, 1 Vpp/75Ω nom. on a BNC connector. |
| SWITCHING SYSTEM: | Mechanical, Break-before-Make. |
| CROSSPOINTS: | 1 of 8. |
| VIDEO CROSSTALK: | -74 dB Chroma @ 5 MHz. |
| FREQUENCY RESPONSE: | 400 MHz +/- 2dB. |
| DIMENSIONS: | 18.8 cm x 10.2 cm x4.4 cm (7.4" x4" x 1.7", W, D, H). |
| WEIGHT: | 0.72 kg. (1.6 lbs.) Approx. |
| OPTIONS: | RK-81, 19" rack adapter |
| Skrót właściwości | Przełącznik 8x1 sygnału composite video. Pasmo przenoszenia - 400 MHz (-3 dB) |
|---|
