| Skrót właściwości | Przełącznik 8x8 sygnałów DVI. Max. Data Rate: 4.95Gbps (1.65Gbps na kanał). |
|---|

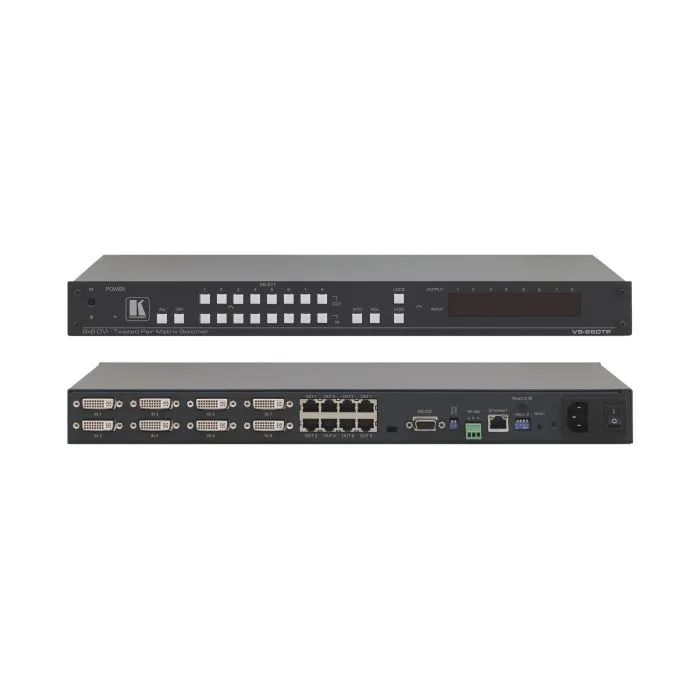

Przełącznik Kramer VS-88DTP
Specyfikacja techniczna
- Skrót właściwości
- Przełącznik 8x8 sygnałów DVI. Max. Data Rate: 4.95Gbps (1.65Gbps na kanał).
Zwiń parametry
Opis produktu
The VS−88DTP is a high−performance matrix switcher for DVI signals. The unit reclocks and equalizes the signal and can route any or all inputs to any or all DGKat™ twisted pair outputs simultaneously. Conference room presentations.Advertising.Rental and staging.
Zwiń opis
The VS−88DTP is a high−performance matrix switcher for DVI signals. The unit reclocks and equalizes the signal and can route any or all inputs to any or all DGKat™ twisted pair outputs simultaneously.
-
Max. Data Rate-4.95Gbps (1.65Gbps per graphic channel).
-
HDTV Compatible-Not HDCP Compliant.
-
DGKat™ Signal Integration-Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
-
Kramer Equalization & re-Klocking™ Technology-Rebuilds the digital signal integrity to travel longer distances.
-
I-EDIDPro™ Kramer Intelligent EDID Processing™-Intelligent EDID handling & processing algorithm ensures Plug and Play operation for DVI systems.
-
System Range-Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.
-
Cable-Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC−DGKat524, BC−DGKat623 or BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
-
Flexible Control Options-Front panel, IR remote (included), RS−232 (K−Router™ Windows®−based software is included), RS−485, Ethernet (Windows®−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
-
Output Disconnect-Each output.
-
Front Panel Lockout.
-
Memory Locations-Stores multiple switches as presets to be recalled and executed when needed.
-
Worldwide Power Supply-100−240V AC.
-
Standard 19” Rack Mount Size-1U. Rack “ears” included.
Zastosowania
Conference room presentations.
Advertising.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 8 DVI−D on DVI−I Molex 24−pin (F) connectors (non−HDCP compliant), 1.2Vpp ; DDC signal 5Vpp (TTL). |
| OUTPUTS: | 8 DGKat twisted pair on RJ−45 connectors. |
| BANDWIDTH: | 4.95Gbps (1.65Gbps per graphic channel). |
| COMPLIANCE WITH STANDARDS: | Supports DVI 1.1. |
| MAX RESOLUTION: | Up to UXGA; 1080p, 1920x1200. |
| POWER CONSUMPTION: | 100−240V AC; 50/60Hz, 43VA. |
| CONTROLS: | Front panel buttons, infrared remote control transmitter, RS−232, RS−485 & Ethernet. |
| DIMENSIONS: | 19" x 7" x 2U W, D, H. |
| WEIGHT: | 2.5kg (5.5lbs) approx. |
| ACCESSORIES: | Power cord, infrared remote controller, rack "ears". |
