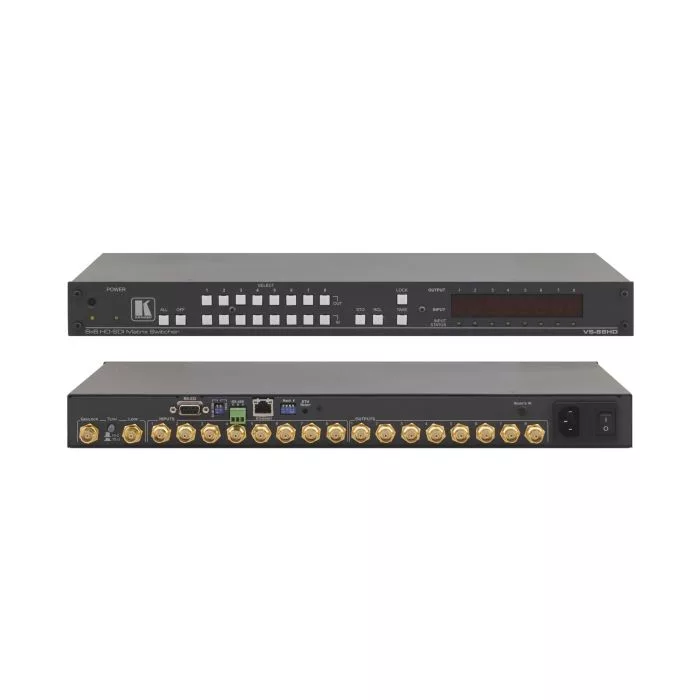

Przełącznik matrycowy Kramer VS-88HD
Przełącznik 8x8 sygnałów HD-SDI i SDI.
SKU
VS-88HD
The VS-88HD is a high-performance matrix switcher for digital video signals up to HD-SDI. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources.
- Max Data Rate — Up To 1.485Gbps.
- INPUTS: — 8 SDI SMPTE–259M, 292M, 344M serial video, 75 ohms on BNC connectors 1 GENLOCK 75Ω / Hi–Z on a BNC connector
- Multi–Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M).
- OUTPUTS: — 8 equalized and reclocked SMPTE–259M, 292M, 344M outputs 75 ohms on BNC connectors 1 Looped GENLOCK 75Ω / Hi–Z on a BNC connector
- MAX. OUTPUT LEVEL: — 800mVpp /75 ohms
- DATA RATE: — Up to 1.485Gbps
- Equalization — Automatic.HDTV Compatible.Switching Synchronization — Synchronize either to external reference or incoming video.Active Input Reporting — Each input button on the front panel automatically lights up when the unit detects a video signal on that input.Memory Locations — Store multiple switches as presets (salvos) to be recalled and executed when needed.Take Button — Execute multiple switches all at once.Control — Front Panel, RS–232 (K–Router™ Windows®–based software is included) and RS–485.Looping Analog Sync Input (Bi–level or Tri–level sync compatible).Selectable Sync Signal Termination.Front Panel Lockout.Worldwide Power Supply — 90–240V AC.Standard 19˝ Rack Mount Size — 1U. Rack “ears” included.
- CONTROLS: — Front–panel, RS–232; and RS–485
- POWER SOURCE: — Universal, 90–240VAC, 50/60Hz 18VA
- DIMENSIONS: — 19 inch (W), 7 inch (D), 1U (H) rack mountable
- WEIGHT: — 2.6 kg. (5.7 lbs.) approx.
- ACCESSORIES: — Power cord, Null–modem Adapter
- Worldwide Power Supply — 100–240V AC.
- Standard 19 — 1U. Rack “ears” included.
Standardy | HDTV, HD-SDI, SDI |
---|---|
Wejścia | SDI |
Wyjścia | SDI |
Sterowanie | RS-232, RS-485 |
Seria | 19" 1U |
Skrót właściwości | Przełącznik 8x8 sygnałów HD-SDI i SDI. |
