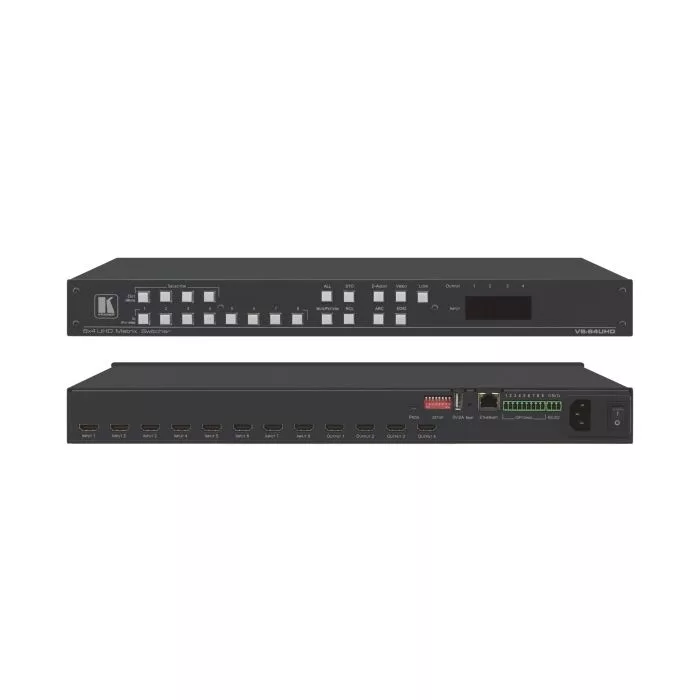

Przełącznik matrycowy Kramer VS-84UHD

VS−84UHD is a high−quality 8x4 matrix switcher for 4K@60Hz (4:2:0) HDMI signals and embedded audio. It reclocks and equalizes the signals and can route any one of eight HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously. VS−84UHD offers a flexible audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio output in addition to ARC support to produce an equivalent 12x8 audio matrix.

• Max. Data Rate — 8.91Gbps data rate (2.97Gbps per graphics channel).
• Max. Resolution — 4K@60Hz (4:2:0).
• Independent 12x8 Audio Matrix — With 8 embedded digital inputs + 4 ARC inputs and 4 embedded digital outputs + 4 ARC outputs.
• Kramer Step–In Over HDMI Technology.
• HDMI, HDCP and DVI Compliance.
• Selectable HDCP Off per Input.
• Memory Locations — 12 presets for quick access to common configurations.
• Advanced EDID Management per Input.
• Active Source & Acceptor Detection.
• Automatic Input Selection — Based on priority selection or last connected input.
• HDMI Support — Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels.
• Kramer reKlocking™ and Equalization Technology — Rebuilds the digital signal to travel longer distances.
  Embedded Pattern Generator:With selectable patterns.
• Lock Button — To prevent tampering.
• Kramer Protocol 3000 Support.
• Firmware Upgrade — Via mini USB, Ethernet or the RS–232 port.
• Control Options — RS–232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet port via LAN, embedded Web pages via LAN for configuration and control.
• Size — Standard 19" (1U). Rack "ears" included.
