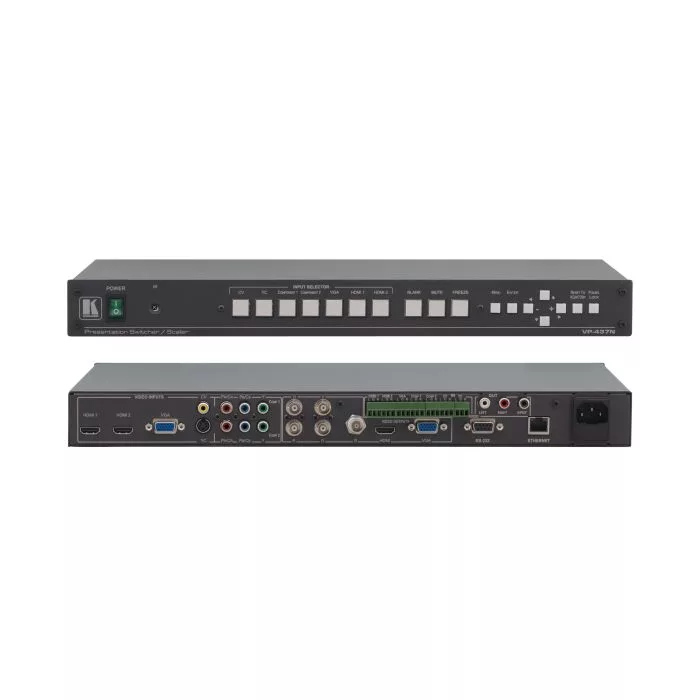

Przełącznik ze skalerem Kramer VP-437N
Specyfikacja techniczna
- Skrót właściwości
- Przełącznik ze skalerem z sygnałów HDMI, VGA, CV, YUV i s-Video, na RGBHV, HDMI i VGA. Oraz niesymetrycznego audio. K-Storm™ Scaling Technology.
Zwiń parametry
Opis produktu
The VP−437N is a 7−input scaler/switcher for composite, s−Video (Y/C), component, computer graphics video and HDMI with unbalanced stereo or S/PDIF audio signals. It scales the selected video signal to a computer graphics or HDTV output resolution, embeds the audio and outputs an HDMI signal. Projection systems in conference rooms, boardrooms, hotels and churches.Home theater.
Zwiń opis
The VP−437N is a 7−input scaler/switcher for composite, s−Video (Y/C), component, computer graphics video and HDMI with unbalanced stereo or S/PDIF audio signals. It scales the selected video signal to a computer graphics or HDTV output resolution, embeds the audio and outputs an HDMI signal.
-
K-Storm™ Scaling Technology-Kramer’s extremely high−performance scaling technology. High quality 3:2 and 2:2 pull down de−interlacing and full up− and down−scaling of computer graphics video input signals.
-
HDTV Compatible.
-
HDCP Compliant-The HDCP (High Definition Content Protection) license agreement allows copy−protected data on the HDMI input to pass only to the HDMI output.
-
Video Inputs-1 composite video, 1 s−Video, 2 component video (HDTV compatible), 1 computer graphics (15−pin HD) & 2 HDMI.
-
HDTV Compatible Component Input.
-
Scaled Outputs-A single output signal simultaneously available in 3 formats: 1 HDMI and 2 RGBHV (5 BNC, & 15−pin HD).
-
Improved HDMI Output Drive-Exceeds 60ft at 1080p @60Hz.
-
Output Resolutions-20 up to WUXGA (1920x1200).
-
HDTV Output Resolutions-Up to 1080p.
-
Audio Inputs-7 unbalanced stereo on terminal blocks.
-
Audio Output-1 S/PDIF, 1 unbalanced stereo, embeds audio into the HDMI output.
-
Multi-Standard-PAL & NTSC.
-
Audio Delay-40ms, 110ms, 150ms, or disable.
-
Companion AFV (Audio-Follow-Video)-Stereo audio for every input.
-
Built-in ProcAmp-Color, hue, sharpness, noise, contrast, and brightness.
-
Multiple Aspect Ratio Selections-Full, overscan, underscan, letter box & panscan.
-
Front Panel Control-Audio mute, video blanking & freeze frame.
-
Front Panel Lockout.
-
Flexible Control Options-Front panel buttons, Ethernet, IR Remote with OSD (on−screen display) & RS−232.
-
Worldwide Power Supply-100−240V AC.
-
Standard 19” Rack Mount Size-1U. Rack “ears” included.
Zastosowania
Projection systems in conference rooms, boardrooms, hotels and churches.
Home theater.
Przykładowa aplikacja
Specyfikacja
| INPUT: | 2 HDMI connectors (HDMI, HDCP version 1.1); 1 VGA on a 15−pin HD (F) connector; 1 composite video on an RCA connector; 1 Y/C on a 4−pin connector; 2 component video each on 3 RCA connectors; 7 unbalanced stereo audio each on 3−pin terminal block connectors. |
| OUTPUT: | 1 RGBHV on 5 BNC connectors; 1 HDMI connector (HDMI, HDCP version 1.1); 1 VGA (RGBHV) on a 15−pin HD connector; 1 S/PDIF and 1 unbalanced stereo audio on RCA connectors. |
| H FREQUENCY: | 15.63−90kHz. |
| V FREQUENCY: | 50−100kHz. |
| RGB SYNCS: | H and V TTL separated syncs. |
| RGB LEVEL: | 1.2Vpp max, 75Ω load. |
| XGA OUT LEVEL: | 1.2Vpp max, 75Ω load. |
| S/PDIF OUT LEVEL: | 0.55Vpp constant. |
| OUTPUT RESOLUTIONS: | Native, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA, 1280x800, 1440x900, 1400x1050, 1600x900. |
| OUTPUT REFRESH RATE: | 60Hz (computer graphics resolutions), 50/60Hz (HDTV resolutions). |
| CONTROLS: | Input selector buttons; blank, mute, freeze buttons; menu, enter, menu arrows, reset to XGA/720p, lock buttons, RS−232, Ethernet, IR. |
| POWER CONSUMPTION: | 100−240V AC, 20VA max. |
| DIMENSIONS: | 19" x 7" x 1U W, D, H, rack mountable. |
| WEIGHT: | 2.7kg (6lbs) approx. |
| ACCESSORIES: | Power cord, null−modem adapter, rack "ears", IR remote control. |
