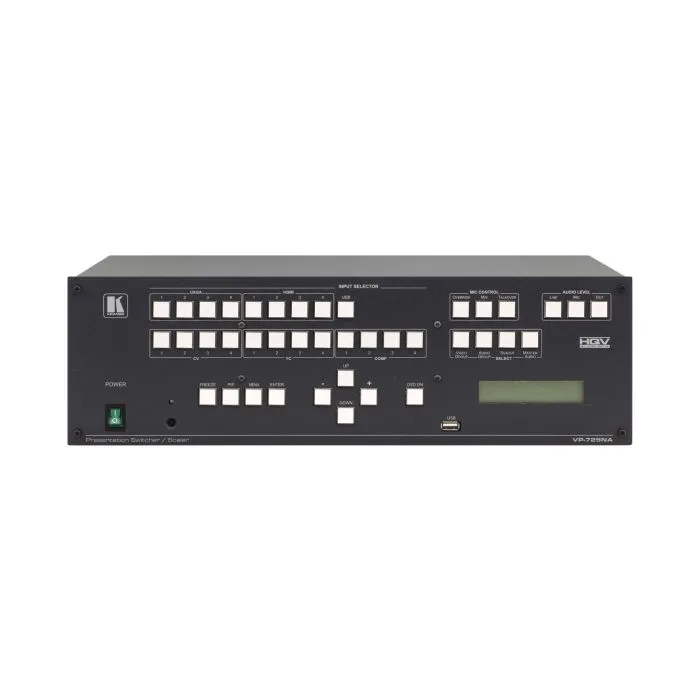

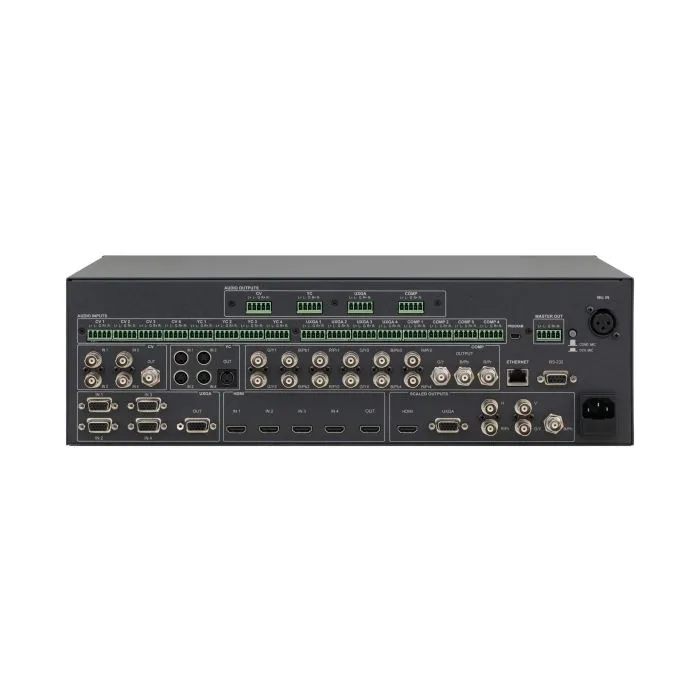

Przełącznik ze skalerem Kramer VP-725NA
Przełącznik 5:4x1 sygnałów HDMI, VGA, CV, s-Video i YUV, oraz symetrycznego stereo. Wysyła przeskalowane sygnały na wyjściach HDMI, VGA i RGBHV.
SKU
VP-725NA
The VP−725NA is a presentation scaler/switcher with multiple signal format sections and balanced stereo audio. The unit has five independent 4x1 video sections: composite, s−Video (Y/C), component (YUV), computer graphics and HDMI, plus a single USB input. It also scales any video input up or down to a selectable graphics or HDTV output resolution and provides glitch−free switching between sources through FTB™ (fade−thru−black) switching technology.
- HQV® Video Processing — HQV (Hollywood Quality Video) processing represents the state–of–the–art in video processing technology, with the highest quality de–interlacing (with 3:2 & 2:2 pull down), noise reduction, and scaling performance for both standard–definition and high–definition signals.
- Deinterlacing and Scaling — High–quality 3:2 and 2:2 pull down, de–interlacing and full up — and down–scaling of computer graphics video input signals.
- HDTV Compatible.
- HDCP Compliant — The HDCP (High Definition Content Protection) license agreement allows copy–protected data on the HDMI input to pass only to the HDMI output.
- Fade–Thru–Black (FTB™) Switching (Scaled Output) — The video fades to black and then the new input fades from black for smooth, glitch–free switching. The output signal provides constant sync so the display never glitches.
- K–IIT XL™ Picture–in–Picture Image Insertion Technology — Ultra stable picture–in–picture, picture–and–picture, and split screen capability. Any video source can be inserted into or positioned next to a computer graphics video source or vice versa with window positioning and sizing controls.
- Projector Anywhere™ Technology — Horizontal & vertical geometry controls compensate for off–axis projector placement.
- Enhanced HDMI Handling — For compatibility with newer operating systems such as Windows 7.
- Multi–Format — Auto, NTSC (3.58/4.43), PAL (M/N/60) & SECAM.
- 6 Switchers in 1 — Five dedicated signal formats: 4x1 composite, 4x1 s–Video (Y/C), 4x1 component (RGB/YUV), 4x1 computer graphics (15–pin HD), 4x1 HDMI and one 21x1:3 scaled output.
- USB Port — For importing JPEG files.
- Scaled Computer & HDTV Outputs — A single output signal in 3 formats (15–pin HD, 5 BNCs, and HDMI) simultaneously.
- HDTV Compatible Component Input.
- HDTV Output Resolutions — 720p, 1080i, and 1080p.
- Computer Graphics Output Resolutions — 23 plus 4 user–definable (custom) output resolutions with selectable refresh rates.
- Multiple Color Space — RGB or YUV output.
- Audio Inputs — Balanced stereo audio inputs, one for each of the 16 analog video inputs.
- Audio Outputs — Balanced stereo audio outputs for all 4 dedicated analog video formats and one for the scaled output. Embeds audio onto the scaled HDMI output.
- Mic Input — Condenser or dynamic with talk over, mix and override controls.
- Audio Level Control — Each input and output.
- Flexible Control — Front panel, IR Remote (with on–screen menus), Ethernet & RS–232.
- Worldwide Power Supply — 100–240V AC.
Standardy | UXGA, HDMI, RGBHV |
---|---|
Wejścia | HDMI, VGA, Component, Composite CV, s-Video Y/C |
Wyjścia | HDMI, VGA, Composite CV, Component YUV, s-Video Y/C |
Audio | Speaker |
Sterowanie | Ethernet, RS-232, IR |
Seria | 19" 3U |
Skrót właściwości | Przełącznik 5:4x1 sygnałów HDMI, VGA, CV, s-Video i YUV, oraz symetrycznego stereo. Wysyła przeskalowane sygnały na wyjściach HDMI, VGA i RGBHV. |
