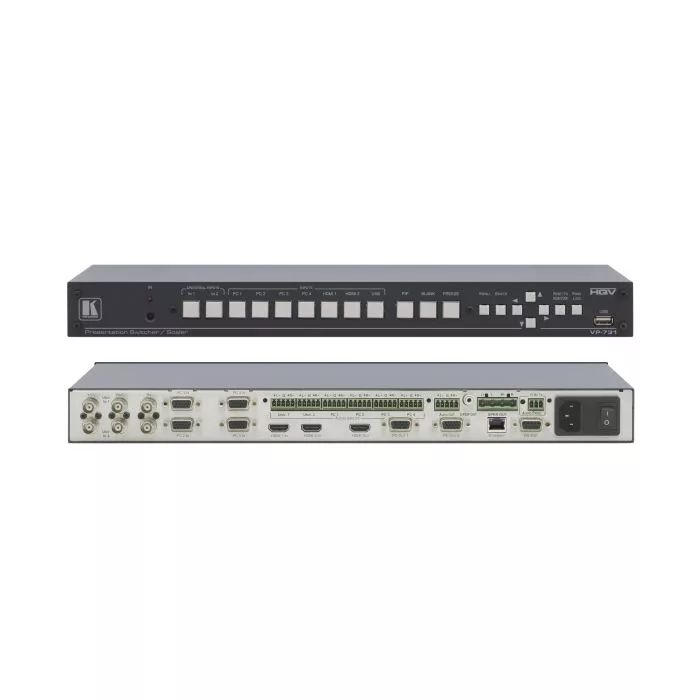

Prezentacyjny przełącznik ze skalerem Kramer VP-731

Przełącznik ze skalerem z sygnałów HDMI, VGA, CV, s-Video, YUV i plików JPG, na HDMI i VGA. Oraz niesymetrycznego audio i S/PDIF.
SKU
VP-731

The VP−731 is a 9−input scaler/switcher for analog video, digital video, balanced stereo and S/PDIF audio signals. It up− or down−scales composite, s−Video (Y/C), component video (YUV), HDMI, computer graphics video and JPEG files to a selectable computer graphics video or HDTV output resolution on identical outputs − one HDMI and two 15−pin HD. It includes a power amplifier to drive loudspeakers. The unit provides glitch−free switching between sources through FTB™ (fade−thru−black) switching technology. The VP−731 is the same as the VP−730 with the addition of Ethernet control.

  • HQV® Video Processing — HQV (Hollywood Quality Video) processing represents the state–of–the–art in video processing technology, with the highest quality de–interlacing (with 3:2 & 2:2 pull down), noise reduction, and scaling performance for both standard–definition and high–definition signals.
  • Fade–Thru–Black (FTB™) Switching — The video fades to black and then the new input fades from black for smooth, glitch–free switching. The output signal provides constant sync so the display never glitches.
  • Video Inputs — 2 universal video each on 3 BNC connectors (composite, s–Video, component), 4 computer graphics/component video (15–pin HD), 2 HDMI and 1 USB (for JPEG data).
  • K–IIT XL™ Picture–in–Picture Image Insertion Technology — Ultra–stable picture–in–picture, picture–and–picture, and split screen capability. Any video source can be inserted into or positioned next to a computer graphics video source or vice versa with window positioning and sizing controls.
  • Projector Anywhere™ Technology — Horizontal & vertical geometry controls to compensate for off–axis projector placement.
  • Scaled Video Outputs — 1 HDMI & 2 15–pin HD.
  • HDTV Compatible.
  • HDCP Compliant — The HDCP (High Definition Content Protection) license agreement allows copy–protected data on the HDMI input to pass only to the HDMI output.
  • Multi–Standard — Auto, NTSC (3.58/4.43), PAL (M/N/60) & SECAM.
  • HDTV Compatible Component Input.
  • HDTV Output Resolutions — 720p, 1080i, and 1080p.
  • Computer Graphics Output Resolutions — 32 plus 4 user–definable (custom) output resolutions with selectable refresh rates.
  • Multiple Aspect Ratio Selections — 4x3 or 16x9, anamorphic, letterbox, and user definable settings.
  • Companion AFV (Audio–Follow–Video) — For every analog video input; supports embedded audio on the 2 HDMI inputs and outputs.
  • Built–In Audio Power Amplifier — 6W RMS per channel audio amplifier with speaker output connectors.
  • Audio Inputs — 6 balanced or S/PDIF audio (each selectable) on terminal blocks, one for each of the 2 universal video and 4 computer graphics video inputs. Individual level adjustment.
  • Audio Outputs — Speaker, S/PDIF (RCA) and balanced stereo audio (terminal blocks). Embeds & de–embeds HDMI audio. Master volume control.
  • Audio Delay — Adjustable from 0 to 340msec.
  • Built–in Time Base Corrector — Stabilizes unstable video sources.
  • Built–in ProcAmp — Color, hue, sharpness, contrast, and brightness are set individually for each input.
  • Advanced Noise Reduction Features — Designed to improve video quality by reducing artifacts such as block, chroma and mosquito noise.
  • Text Overlay.
  • Front Panel Lockout.
  • Front Panel Freeze Frame.
  • Video Blanking — Blue or black screen selectable.
  • Zoom — 100% to 400%.
  • Flexible Control Options — Front panel, IR remote (with on–screen menus), VP–729 iPhone® App (inputs need to be renamed), Ethernet and RS–232.
  • Worldwide Power Supply — 100–240V AC.
Specyfikacja techniczna
Standardy VGA, UXGA, HDTV, HDMI
Wejścia HDMI, VGA, Component YUV, Composite CV, s-Video Y/C
Wyjścia HDMI, VGA
Audio Digital, Balanced, Unbalanced, S/PDIF, Speaker
Sterowanie Ethernet, USB, RS-232, IR
Rozmiar 19" 1U
Krótki opis Przełącznik ze skalerem z sygnałów HDMI, VGA, CV, s-Video, YUV i plików JPG, na HDMI i VGA. Oraz niesymetrycznego audio i S/PDIF.
