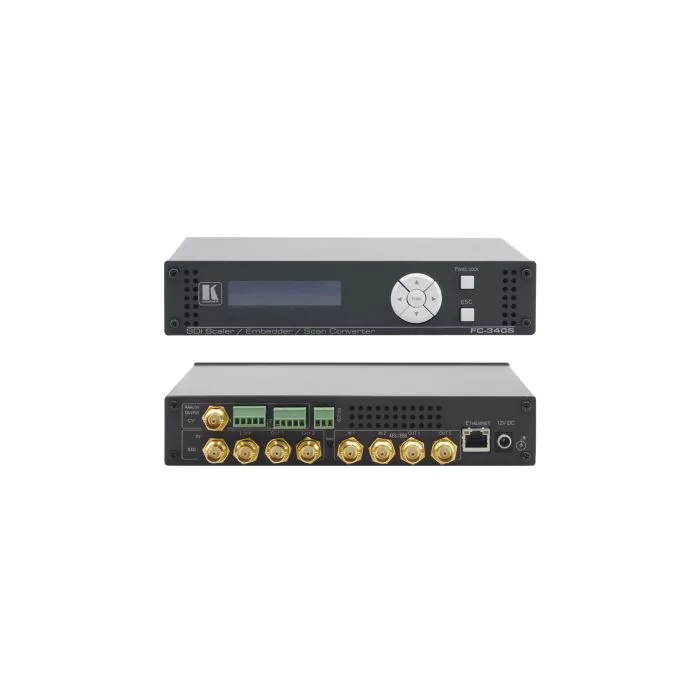

Skan konwerter Kramer FC-340S

3G HD–SDI Scaler/Embedder/Scan Converter.

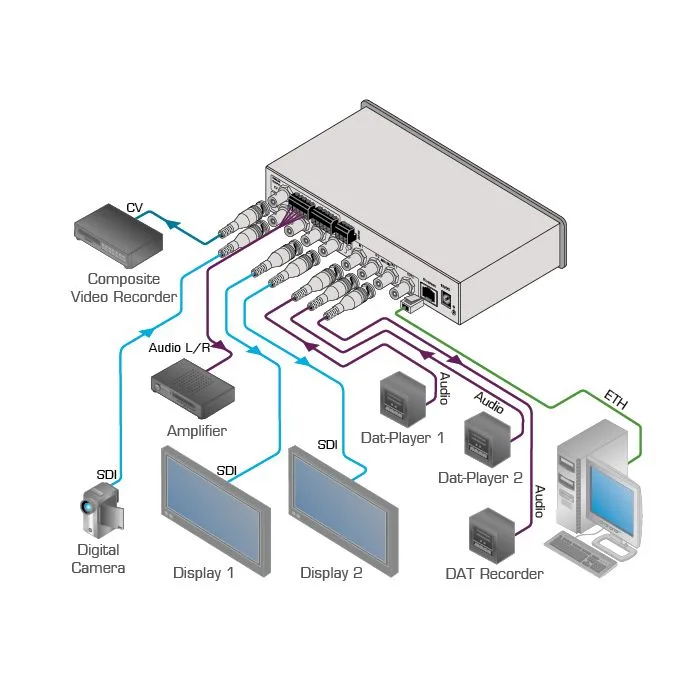

The FC-340S is a broadcast-quality video scaler and audio embedder/de-embedder for digital signals up to 3G HD-SDI. The unit inputs SDI and AES/3id signals and simultaneously outputs two SDI and composite video signals while the audio embedded in the SDI input signal is output to both AES/3id and balanced stereo audio outputs.

  • Max. Data Rate — 3Gbps.
  • HDTV Compatible.
  • Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
  • Looping Video Input.
  • Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
  • Embedding Options — Selects embedded audio or embeds two independent audio groups.
  • Flexible Control Options — Front panel with 2–row LCD, Ethernet & RS–232.
Specyfikacja techniczna
Standardy 3G HD-SDI
Wyjścia 3G-HD-SDI
Audio Digital, AES/3id, Balanced
Sterowanie Ethernet, RS-232
Seria Desktop
Skrót właściwości 3G HD–SDI Scaler/Embedder/Scan Converter.
