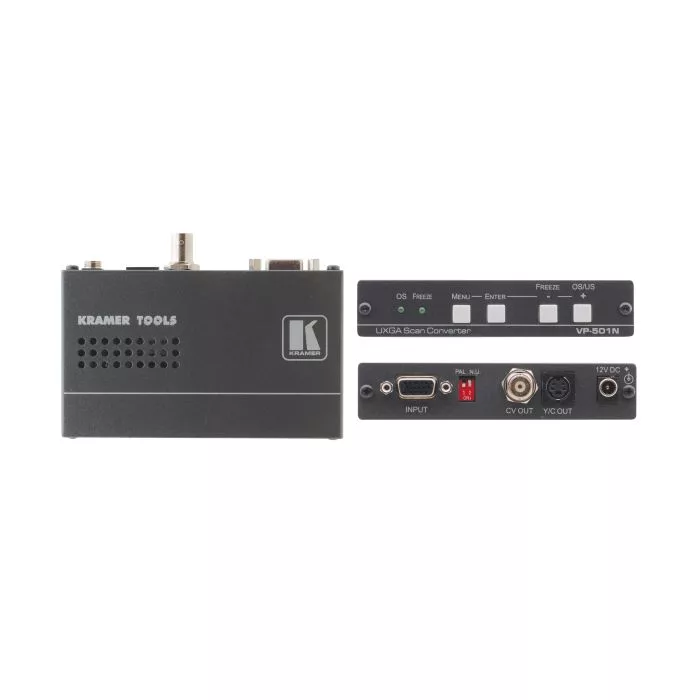

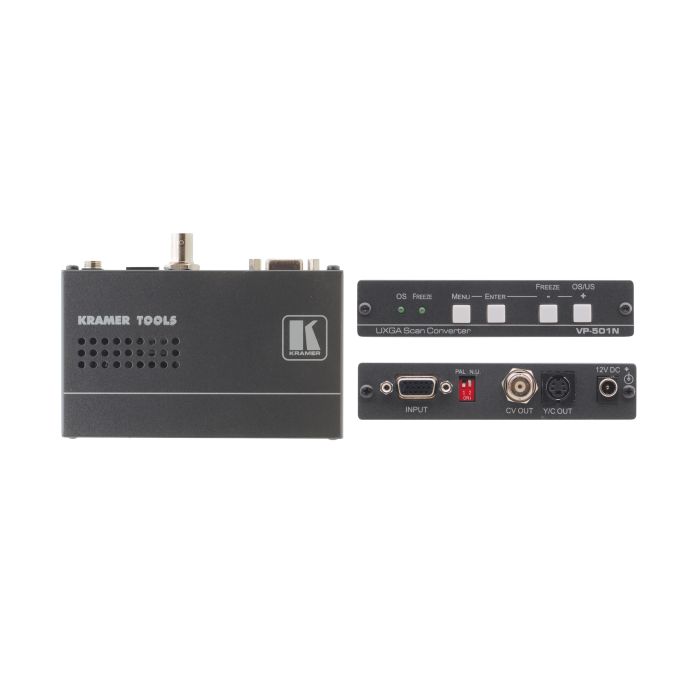

Skan konwerter Kramer VP-501N
Skan konwerter zmieniający sygnały VGA i komponent do systemów PAL lub NTSC na złączach CV i s-Video.
Max. rozdzielczość: UXGA i 1080i.
SKU
VP-501N
The VP−501N is a scan converter for computer graphics and HDTV component video signals. It converts the input up to UXGA (1600x1200) and HDTV (1080i)to composite and s−Video (Y/C) signals simultaneously in either PAL or NTSC formats.
-
Input Compatibility-Up to UXGA (1600x1200 and HD (1080i) resolutions.
-
ProcAmp Control-Color, sharpness, contrast, and brightness controls.
-
Color Space-RGB or YUV (Selectable).
-
Multi-Standard-PAL or NTSC (selectable).
-
Multi-Format Capability-Composite video and s−Video (Y/C) simultaneously.
-
Control-Front panel with on screen display (OSD).
-
Multiple Memory Locations-Store and recall up to 4 presets (ProcAmp, input, output, zoom, and no input test pattern).
-
Flicker Reduction.
-
Built-in Test Patterns-Select 1 of 7 test patterns to display when no input signal is detected.
-
Overscan or Underscan (Selectable) with LED indicator.
-
Freeze Frame with LED indicator.
-
Compact Kramer TOOLS™-3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Zastosowania
Multimedia, board rooms, and video-conferencing.
Any application where high quality conversion of graphical data signals to video signals is required.
Przykładowa aplikacja
Specyfikacja
| INPUT: | 1 UXGA on a 15−pin HD (F) connector. |
| OUTPUTS: | 1 composite video, 1Vpp/75Ω on a BNC connector; 1 Y/C (s−Video), 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on a 4−pin connector. |
| OUTPUT STANDARD: | PAL, NTSC (user−selectable). |
| MAX. OUTPUT LEVEL: | 1Vpp. |
| INPUT RESOLUTION: | VGA up to UXGA. |
| S/N RATIO: | 49dB. |
| CONTROLS: | Front panel and OSD: ProcAmp video controls, freeze, underscan/overscan, auto−image, 8 color bars. |
| POWER CONSUMPTION: | 12V DC, 320mA. |
| DIMENSIONS: | 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H. |
| WEIGHT: | 0.3kg (0.67lbs) approx. |
| ACCESSORIES: | Power supply, mounting bracket. |
| OPTIONS: | RK−3T 19" rack adapter. |
| Skrót właściwości | Skan konwerter zmieniający sygnały VGA i komponent do systemów PAL lub NTSC na złączach CV i s-Video. Max. rozdzielczość: UXGA i 1080i. |
|---|
