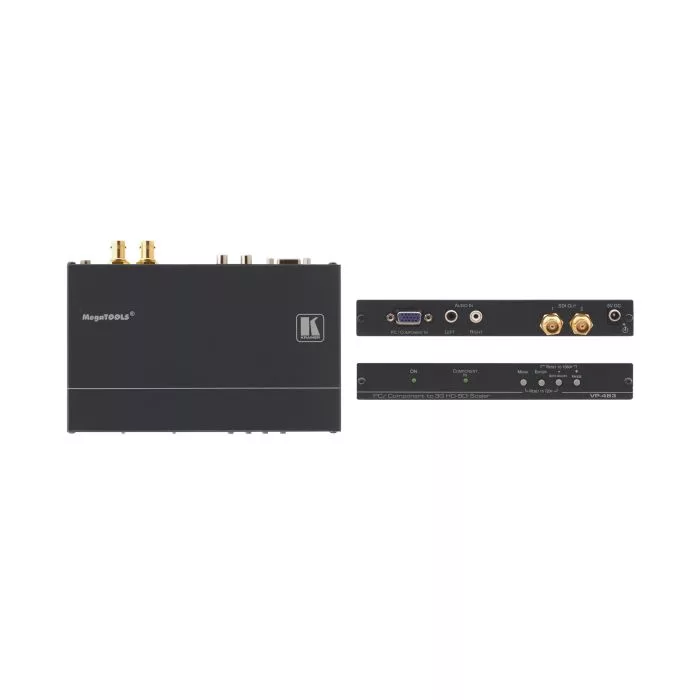

Skaler Kramer VP-483
Skaler sygnału grafiki komputerowej wraz z dźwiękiem do wyjścia SDI.
Rozdzielczości wyjściowe: do 1080p (3G HD−SDI).
SKU
VP-483
The VP−483 is a high−performance digital scaler for computer graphics video signals to WUXGA and 1080p and stereo audio. The unit embeds the audio and up or down scales input to two SDI, HD−SDI or 3G HD−SDI signals.
-
HDTV Compatible.
-
Multi-Standard Operation - SDI (SMPTE 259M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M).
-
Video Input - Computer graphics on a 15−pin HD connector.
-
Audio Input - Unbalanced stereo audio on RCA connectors.
-
Output Resolutions - Up to 1080p (3G HD−SDI).
-
Built-In ProcAmp Features - Color hue, sharpness, contrast and brightness.
-
Freeze Button.
-
Non-Volatile Memory - Saves final settings.
-
Controls - Front panel buttons with OSD (on screen display).
-
Compact MegaTOOLS™ - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.
Zastosowania
Projection systems in conference rooms, boardrooms, hotels and churches.
Home theater up-scaling.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 1 computer graphics/component on 15−pin HD (F) connector, 1 unbalanced stereo audio on 2 RCA connectors. |
OUTPUTS: | 2 SD/HD/3G HD−SDI on BNC connectors. |
INPUT RESOLUTIONS: | See the document “Kramer Scalers Input−Output Resolutions” available for download in the Downloads tab above. |
OUTPUT RESOLUTIONS: | 720p, 1080p SF30/29/25, 1080p @30/29/25/24/23, 1080p @59, 1080i @59, 720p @59, 480i @59, 576i, 1080p @50, 1080i @50, 720p @50, 1080p, 1080i (all resolutions are outputted @60Hz, except where noted). |
OUTPUT REFRESH RATE: | 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions. |
OUTPUT SIZE: | Full, panscan, letterbox, under 2, under 1, overscan. |
PROCESSING DELAY: | 20ms. |
CONTROLS: | Menu, OSD and Freeze buttons. |
POWER CONSUMPTION: | 5V DC. |
OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
HUMIDITY: | 10% to 90%, RHL non−condensing. |
DIMENSIONS: | 18.8cm x 11.4cm x 2.5cm (7.4” x 4.5” x 1”) W, D, H. |
WEIGHT: | 0.47kg (1.04lbs) approx. |
ACCESSORIES: | Power supply. |
OPTIONS: | RK−T2B 19" rack adapter. |
Skrót właściwości | Skaler sygnału grafiki komputerowej wraz z dźwiękiem do wyjścia SDI. Rozdzielczości wyjściowe: do 1080p (3G HD−SDI). |
---|
