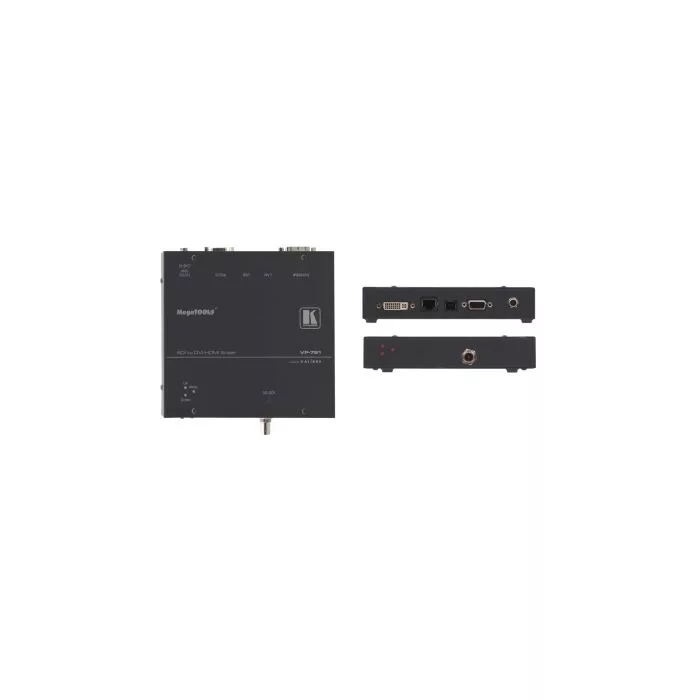

Skaler Kramer VP-791

The VP−791 is a high−performance digital scaler for 3G HD−SDI signals. It up− or down−scales the incoming signal, processes the image with HQV and flexible geometry correction and outputs the signal to a DVI/HDMI connector.

• HQV® Video Processing — HQV (Hollywood Quality Video) processing represents the state–of–the–art in video processing technology, with the highest quality de–interlacing (with 3:2 & 2:2 pull down), 4D motion adaptive SD noise reduction, and outstanding scaling performance for both standard–definition and high–definition signals.
• HDTV Compatible.
• Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
• Supported Input Resolutions — HD: 720p23.97/24/25/30/50/59.94/60, 1080i50/59.94/60, 1080psf, 1080p23.97/24/25/30, 1080p30/50/59.94/60; SD: 625i (576i), 525i (480i).
• HDMI Output Support — Deep color up to 12 bit.
• Powerful Geometry Correction — For off–axis projection, pin/barrel and image rotation.
• Portrait Mode Image Extraction — Rotation and zoom from landscape input.
• Selectable Processing Versus Latency — Best Picture and low latency modes; Best Picture latency as low as 0.25–frame progressive inputs, 1.25–fields interlaced inputs.
• Selectable I/O Lock Mode — Or frame rate conversion mode.
• Flexible Colour Calibration Controls — RGB Gains, RGB Cut–Offs/Black Levels, Saturation, Hue, Brightness, Contrast controls, Gamma selection.
• Active 3G HD–SDI Cable Equalization.
• Built–in Test Pattern Generator.
• Non–Voltatile Memory — Auto–saves and recalls settings.
• USB Port — For upgrading firmware.
• Programmable Customer Logo on Menu.
• Flexible Control Options — Built–in Web server RS–232, TCP/IP API, keypad for direct input selection and OSD menu access.
