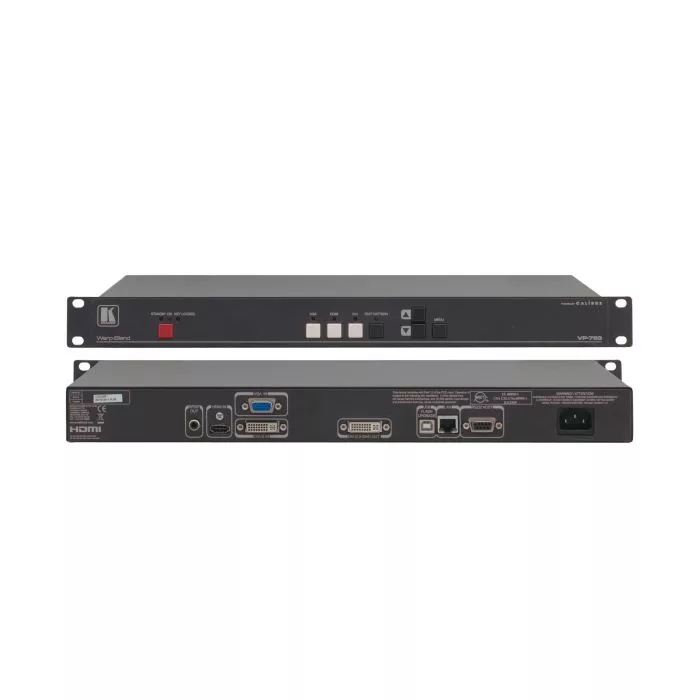

Skaler Kramer VP-793

The VP−793 is a high−performance scaler for HDMI, DVI and computer graphics signals developed specifically for driving large screen displays and multiple screen applications from video or graphics sources. It up− or down−scales the incoming signal, processes the image with HQV, professional grade edge blending, flexible warping & geometry correction and outputs the signal to a DVI/HDMI connector.

• Full Warp Mapping — Easy warp map creation for stacked projector alignment and curved screen multi–projector tiling via an included PC application.
• Powerful Geometry Correction — For off–axis projection, pin/barrel and image rotation, pan, tilt and zoom.
• Edge Blending — 4–sided professional grade edge blend with 48–bit processing, degamma & multi–region black level correction.
• Multi–Format Operation — HDMI, DVI, computer graphics and component inputs for signals up 1080p & WUXGA.
• HQV® Video Processing — HQV (Hollywood Quality Video) processing represents the state–of–the–art in video processing technology, with the highest quality de–interlacing (with 3:2 & 2:2 pull down), 4D motion adaptive SD noise reduction and outstanding scaling performance for both standard–definition and high–definition signals.
• HDTV Compatible.
• HDCP Compliant.
• Supported Resolutions — HD 720p, 1080i, 1080psf, 1080p23.97/24/25/30, 1080p30, 1080p50, 1080p59.94, 1080p60; ED 480p, 576p; SD 625i (576i), 525i (480i); common VESA graphics formats from 640x480 to 1920x1200 (with reduced blanking for 1920x1200 and 1600x1200 modes).
• HDMI Support — Deep color up to 12 bit.
• Superior De–interlacing — Motion adaptive per pixel video de–interlacing with multi–directional diagonal de–interlace filter reduces HD & SD image flicker and artifacts.
• Selectable Processing Versus Latency — Best picture and low latency modes; latency as low as 0.25–frame progressive inputs, 1.25–field interlaced inputs.
• Selectable I/O Lock Mode — Or free run selectable output modes.
• Selectable Aspect Ratio Conversion — Or incoming aspect ratio preserve mode.
• Flexible Color Calibration Controls — RGB Gains, RGB Cut–Offs/Black Levels, Saturation, Hue, Brightness, Contrast controls, Gamma selection.
• Audio De–embedding — From HDMI to S/PDIF compatible formats.
• Built–in Test Pattern Generator.
• Non–Voltatile Memory — Auto–saves and recalls settings.
• USB Port — For upgrading firmware.
• Flexible Control Options — RS–232, TCP/IP API and Web Server, keypad for direct input selection, PC–based Warp Map Generator tool and OSD menu access.
• Worldwide Power Supply — 100–240V AC.
