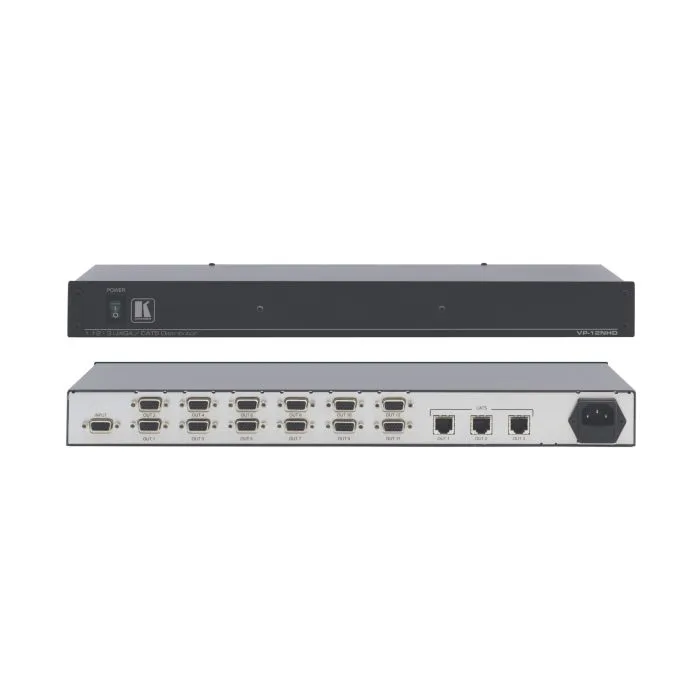

Wzmacniacz dystrybucyjny Kramer VP-12NHD

1:12 Computer Graphics Video Distribution Amplifier with 3 Twisted Pair Transmitters.
SKU
VP-12NHD

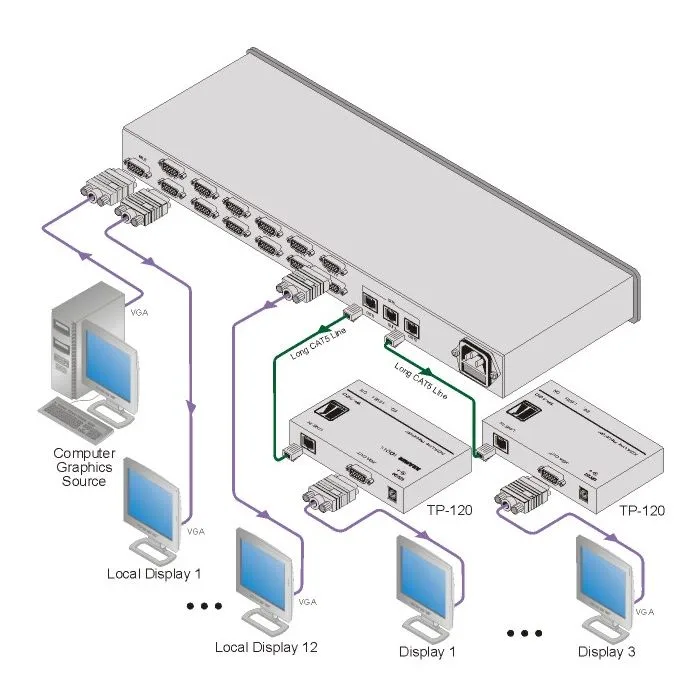

The VP-12N is a high performance distribution amplifier for computer graphics video signals. It takes one input, provides correct buffering and isolation, and distributes the signal to 12 computer graphics outputs on 15-pin HD connectors and three twisted pair outputs.

  • Bandwidth — 300MHz (–3db).
  • Max. Resolution (Twisted Pair) — WUXGA & 1080p.
  • HDTV Compatible.
  • Sync Polarity Settings — H & V switches for improved HDTV compatibility with the CAT 5 outputs.
  • Power Connect™ System — Only one unit in a system, either the transmitter or the receiver needs to be connected to a power source. All the system units must have the Power Connect system to use this feature.
  • Twisted Pair Connectors — RJ–45 connectors.
  • Control — RGB Level (Gain), ID bit.
  • Twisted Pair Output — Requires a computer graphics video twisted pair receiver to convert the twisted pair signal back into a computer graphics video signal.
  • System Range (Twisted Pair) — Up to 100 meters (300’).
  • Cable (Twisted Pair) — UTP (unshielded twisted pair) such as CAT 5
Specyfikacja techniczna
Standardy VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA, HD 1080p, HD 1080i, HD 720p, HD 576p, HD 576i, HD 480p, HD 480i
Wejścia VGA
Wyjścia VGA
Seria 19" 1U
Skrót właściwości 1:12 Computer Graphics Video Distribution Amplifier with 3 Twisted Pair Transmitters.
